Portable Non Intrusive Ultrasonic Water Flow Sensor External Flow Meter DN15-DN100
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | IST-2000B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 179-850/set |
| Packaging Details: | 40.00cm * 40.00cm * 40.00cm |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Pipe Diameter: | DN15 ~ DN100 | Max Flow Velocity: | 64m / S |
|---|---|---|---|
| Working Voltage: | 7.2V～15V | Protection Rate: | IP65 |
| Weight: | 2.6±0.1kg | Grade: | Industrial |
| Liquid Level: | 0-10m | Working Temperature: | 0～60℃ |
| Serial Port: | RS485 | Pipe Diameter: | DN15~100mm |
| Water Depth Range: | 0.02~3m, 0.02~10m | Process Pressure: | -0.1~2.0MPa |
| Communicating Protocol: | Modbus Protocol, RS485 | Transducer: | Encapsulated Design,IP68 |
| Relative Humidity: | 35 To 85% RH (non-condensing) | ||
| Highlight: | DN15 Ultrasonic Water Flow Sensor,DN15 External Flow Meter,Non Intrusive Ultrasonic Water Flow Sensor |
||
Product Description

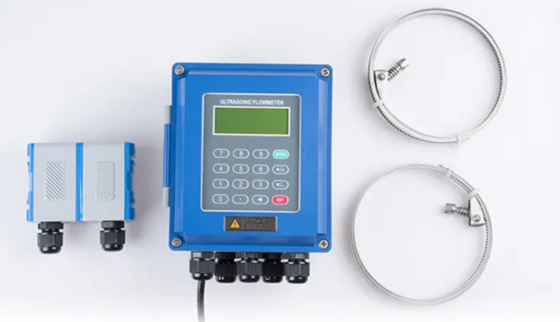

Portable Non Intrusive Ultrasonic Water Flow Sensor External Flow Meter DN15-DN100
Reduce downtime and labor costs with our easy-to-install clamp-on water flow meter. Designed for efficiency, the sensor attaches directly to the exterior of the pipeline, requiring no tube breaking and no direct contact with the medium. This non-invasive ultrasonic flow meter is widely used in municipal irrigation and industrial cooling systems. Its wide range ratio and robust error-correction technology ensure economical and accurate performance for both temporary mobile inspections and long-term fixed installations in large-scale piping networks.
Product Key Attributes
| name | Versatile DN50 Clamp On Ultrasonic Flow Meter Environmentally Friendly |
| Medium | Water, Liquid, Corrosive Liquid, Oil |
| type | Ultrasonic Meters |
| accuracy | +/-1% |
| Connectivity | Clamp-On |
| customized support | OEM, ODM |
| Power | DC24V |
| Protection Rate | IP65 |
| Grade | Industrial |
| Pipe Diameter | DN15~1500mm |
FAQs
Are you a ultrasonic flow meter factory or a trading company?
We are original ultrasonic flow meter manufacturer for flow instrument in nanjing.China. We warmly welcome you come and visit our ultrasonic flow meter factory. Video factory walk through is also available
How do you calibrate the flowmeter?
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters. We use the Gravimetric for the 0.2% R flowmeters.
Can you provide ultrasonic flow meter installation videos or manuals for us?
No problem, we'll provide tutorials for installation for you. For all our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.
Can I customize my logo and name on the label and the ultrasonic flow meter body?
Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.
