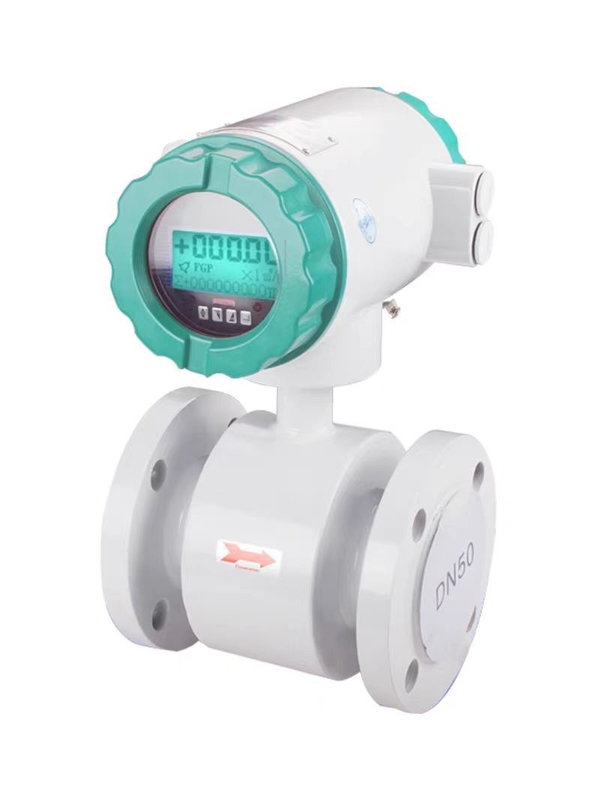

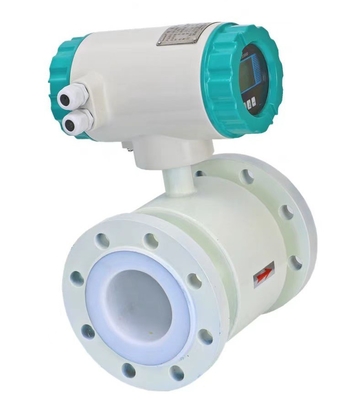

Customized Magnetic Flow Meters For Water HART Options DN500-DN3000
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLDG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD200-800/ set |
| Packaging Details: | wooden package |
| Delivery Time: | 2-3 word days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per day |
|
Detail Information |
|||
| Caliber: | DN500-3000 | Power Supply: | AC220V，DC24V, 3.6V |
|---|---|---|---|
| Display: | Instantaneous Flow, Total Flow, Flow Velocity | Structure Type: | Integrate Or Remote |
| Pressure: | 0.6Mpa-10Mpa | Accuracy: | ±0.5% Of Reading |
| Fluid Temperature: | -20°C~120°C | Ambient Temperature: | -20℃~60℃ |
| Environment Temperature: | -10℃～+60℃ | Output: | 4-20mA |
| Communication: | RS485 MODBUS RTU, HART, GPRS | Electrode: | SS316L, Hastelloy B, Hastelloy C, Titannium, Tantanlum, Platinum-iridium |
| Flange Standard: | DIN, ANSI, JIS | ||
| Highlight: | Customized Magnetic Flow Meters For Water,Customized electro flow meter,DN3000mm Diameter electro flow meter |
||
Product Description
Customized Magnetic Flow Meters For Water HART Options DN500-DN3000
Electromagnetic flowmeters can be used to measure the volume flow of conductive fluids in closed pipelines, and can also be used to measure the volume flow of corrosive liquids such as strong acids and alkalis and uniform liquid-solid mixed liquids such as mud, pulp, and paper pulp.
Basic function
- Low-frequency square-wave exciting,exciting frequency:1/16 power frequency,1/20power frequency,1/25 power frequency;
- High-frequency square-wave exciting,exciting frequency:1/2 power frequency(for grouting liquid measure);
- Exciting current can be selected for 125mA,187.5mA,250mA,500 mA；
- No need to add empty pipeline measurement, and can measure continuously, alarm by fixed value;
- Current speed range:0.1 --- 15m/s,current speed resolution:0.5mm/s;
- AC high-frequency switching power,range of voltage:85VAC --- 250VAC;
- DC 24V switching power,range of voltage:20VDC --- 36VDC；
- Network function:MODBUS,GPRS,PROFIBUS ,HARTcommunication interface(choose)；
- Chinese or English displaying mode, (other languages can be set)；
- Three integrator gross inside, respective register: Forward gross, reverse gross and minus value gross.
Especial function
- Recording time when power turn-off, to record power broken time of instrument system automatically and recruit to count the missing flux；
- Recording function of hour gross, to record the flux gross by hour, fit for timed measure;
- Infrared handing telecontrol keyboard,all the functions of far-untouched controlling converter.
Electromagnetic Flow Meter FAQ
1. who are we?
We are based in nanjing, China, start from 2016,
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electromagnetic Flow Meter,Ultrasonic Flow Meter,Vortex Flow Meter,Thermal Mass Flow Meter ect
4. why should you buy from us not from other suppliers?
Focus on instrument manufacturing for 10 years
Independent research and development design
High accuracy flow meter
