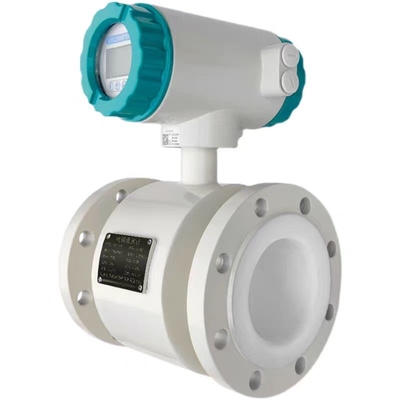

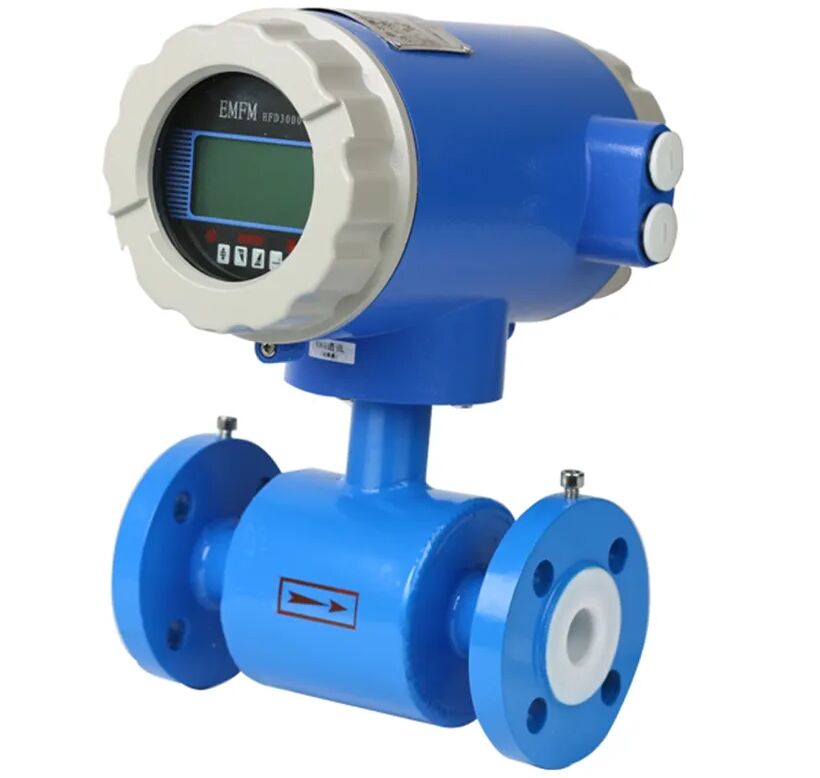

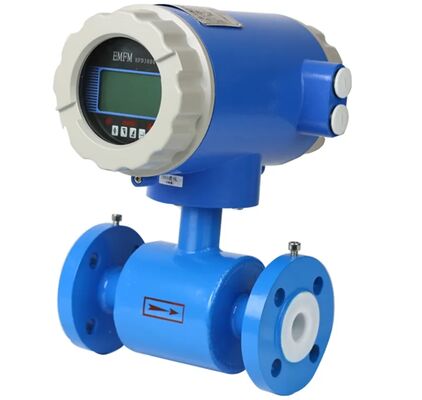

DN10-50 Magnetic Flow Meter For Various Industrial And Agricultural Applications
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLDG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD200-800/ set |
| Packaging Details: | wooden package |
| Delivery Time: | 2-3 word days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per day |
|
Detail Information |
|||
| Caliber: | DN10-50 | Power Supply: | AC220V，DC24V, 3.6V |
|---|---|---|---|
| Display: | Instantaneous Flow, Total Flow, Flow Velocity | Structure Type: | Integrate Or Remote |
| Pressure: | 0.6Mpa-10Mpa | Accuracy: | ±0.5% Of Reading |
| Fluid Temperature: | -20°C~120°C | Ambient Temperature: | -20℃~60℃ |
| Environment Temperature: | -10℃～+60℃ | Output: | 4-20mA |
| Communication: | RS485 MODBUS RTU, HART, GPRS | Electrode: | SS316L, Hastelloy B, Hastelloy C, Titannium, Tantanlum, Platinum-iridium |
| Flange Standard: | DIN, ANSI, JIS | ||
| Highlight: | DN50 Magnetic Flow Meter,Industrial Magnetic Flow Meter,DN50 electromagnetic water flow meter |
||
Product Description
DN10-50 Magnetic Flow Meter For Various Industrial And Agricultural Applications
Electromagnetic flowmeters can be used to measure the volume flow of conductive fluids in closed pipelines, and can also be used to measure the volume flow of corrosive liquids such as strong acids and alkalis and uniform liquid-solid mixed liquids such as mud, pulp, and paper pulp. Widely used in petrochemical industry, iron and steel metallurgy, water supply and drainage, water irrigation, water treatment, environmental protection sewage measurement and control, paper making, medicine, food and other industrial and agricultural production process flow measurement and control.
Electromagnetic flowmeter lining material selection
It should according to the measured medium abrasiveness,corrosion resistance,and temperature to choose lining materials
| Material | Main performances | Applications | |
| Polyurethane |
2.Not be perfect in acid/alkali resistance.3.Can't be used for water mixed with organic impregnants |
＜45℃ Applicable in mineral serosity, slurry and coal slurry of high abrasion. |
|
|
Natural rubber (soft rubber) |
Be of good elasticity, and abrasion resistance.2.Be resistant to low acid |
＜80℃ Measuring the water ,sewage |
|
|
Acidproof rubber (hard rubber) |
1. Under normal temperature, of hydrochloric acid, Be resistant to acetic acid, oxalic acid, ammonia water, Phosphoric acid and 50% of sulfuric acid, sodium hydroxide (k) corrosion 2. Not resistant to corrosion of strong oxidizer |
-25℃～+90℃ Measuring the the general of acid, alkali, salt solution |
|
| Neoprene | 1.Be of good elasticity, retractility and abrasion resistance.2.Be resistant to low acid, alkali and salt but not for oxidation mediums |
＜80℃ Measuring Water, sewage and slurry, mineral serosity of low abrasion |
|
| Fluorine plastic |
Teflon F-4 (PTFE) |
The most steadiest material in plastics which is resistant lo boiling hydrochloric acid, vitriol andaqua fortis as well as strong alkali and organic impregnates .2.Not be perfect in abrasion resistance |
-40℃～+180℃ Measuring Strong corrosive mediums such as strong acid and alkali |
|
F-46 (PTFE) |
1.Having the same abrasion resistance with PTFE.2.Resistable for low abrasion. 3.Having strong resistance load pressure |
1.The same as PTFE.2.Applicable in mediums of low abrasion. | |
| (PFA) | Having the same abrasion resistance with PTFE. Having strong ability of load pressure resistance | Applicable in state of load pressure | |
