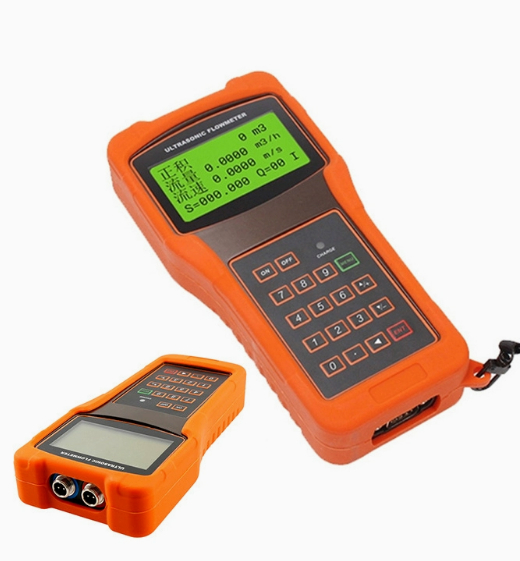

Non Invasive Convenient Ultrasonic Water Flow Meter Ultrasonic Flow Transmitter DN15-DN100
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | IST-2000H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 200-500/set |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Pipe Diameter: | DN15 ~ DN100 | Max Flow Velocity: | 64m / S |
|---|---|---|---|
| Working Voltage: | 24V | Protection Rate: | IP65 |
| Weight: | 1kg | Grade: | Industrial |
| Liquid Level: | 0-10m | Working Temperature: | 0～60℃ |
| Serial Port: | RS485 | Pipe Diameter: | DN15~1500mm |
| Water Depth Range: | 0.02~3m, 0.02~10m | Process Pressure: | -0.1~2.0MPa |
| Communicating Protocol: | Modbus Protocol, RS485 | Transducer: | Encapsulated Design,IP68 |
| Relative Humidity: | 35 To 85% RH (non-condensing) | ||
| Highlight: | Non Invasive Ultrasonic Water Flow Meter,Non Invasive Ultrasonic Flow Transmitter,DN100 Ultrasonic Water Flow Meter |
||
Product Description

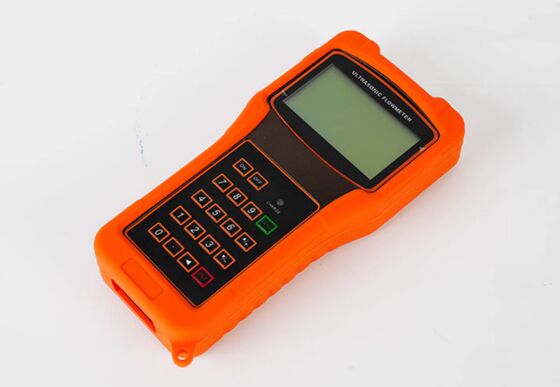

Non Invasive Convenient Ultrasonic Water Flow Meter Ultrasonic Flow Transmitter DN15-DN100
Product Description
The external clamp ultrasonic flowmeter product adopts the principle of ultrasonic time difference to measure flow, and can achieve flow measurement in DN50~DN700 pipelines. No need to break the tube, easy measurement. The flow rate can be measured without the need to attach the sensor to the pipeline. Installation is very convenient and fast. The ultrasonic heat metering function can also be selected based on the flow measurement to provide reference for the heating efficiency of the heating industry. When an ultrasonic beam propagates in a liquid, the flow of the liquid will cause a slight change in propagation time, which is proportional to the flow velocity of the liquid. At zero flow rate, the time required for the two sensors to emit and receive sound waves is the same. When the medium flows, the propagation time of the sound waves in the countercurrent direction is greater than that in the downstream direction.
Experience the next level of flow sensing with our advanced clamp-on flow meter. Engineered with digital signal processing (DSP) and multi-pulse technology, it provides exceptional stability and minimal zero drift even in harsh industrial environments. By measuring the propagation time difference of ultrasonic beams, this meter calculates flow velocity with high accuracy. Whether you are dealing with difficult-to-contact media or require strong anti-interference performance, our ultrasonic flowmeter solves measurement challenges that other instruments cannot handle.
Choosing Us Means Choosing Major
Suitable For Various Construction Sites
Ultrasonic Flow Meter Widely Used For Flow Measurement And Control In Agricultural
Production Processes Such As Petrochemicals, Steel Metallurgy
Drainage, Water Conservancy Irrigation, Water Treatment
Environmental Wastewater Measurement And Control
Papermaking, Pharmaceuticals, Food Power Generation
And Energy Conservation
FAQs
Are you a ultrasonic flow meter factory or a trading company?
We are original ultrasonic flow meter manufacturer for flow instrument in nanjing.China. We warmly welcome you come and visit our ultrasonic flow meter factory. Video factory walk through is also available
How do you calibrate the flowmeter?
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters. We use the Gravimetric for the 0.2% R flowmeters.
Can you provide ultrasonic flow meter installation videos or manuals for us?
No problem, we'll provide tutorials for installation for you. For all our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.
Can I customize my logo and name on the label and the ultrasonic flow meter body?
Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.
