Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | IST-2000H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 200-500/set |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Pipe Diameter: | DN50 ~ DN700 | Max Flow Velocity: | 64m / S |
|---|---|---|---|
| Working Voltage: | 24V | Protection Rate: | IP65 |
| Weight: | 1kg | Grade: | Industrial |
| Liquid Level: | 0-10m | Working Temperature: | 0～60℃ |
| Serial Port: | RS485 | Pipe Diameter: | DN15~1500mm |
| Water Depth Range: | 0.02~3m, 0.02~10m | Process Pressure: | -0.1~2.0MPa |
| Communicating Protocol: | Modbus Protocol, RS485 | Transducer: | Encapsulated Design,IP68 |
| Relative Humidity: | 35 To 85% RH (non-condensing) | ||
| Highlight: | Energy Efficient Handheld Flow Meter,Energy Efficient portable ultrasonic flow meter,DN700 Handheld Flow Meter |
||
Product Description
Energy Efficient Handheld Flow Meter With Error Correction Technology DN50-DN700
Product Description

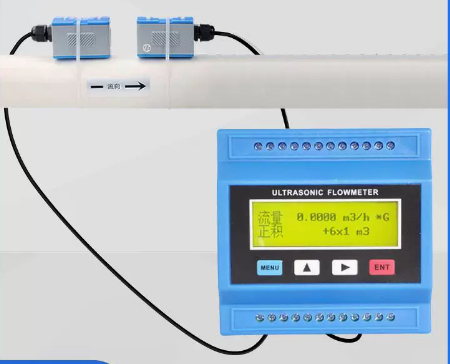

Our external clamp ultrasonic flowmeter is a versatile tool for modern flow management.
Measurement Range: DN50 to DN700 pipelines.
Key Principle: Ultrasonic time difference with downstream and countercurrent wave analysis.
Top Features: High measurement accuracy, wide range ratio, and zero-point stability.
Applications: Specifically designed for heating efficiency reference, water distribution, and measuring media that are difficult to observe.
Achieve accurate, digital-ready flow data without interrupting your liquid flow or compromising pipeline integrity.
FAQs
Are you a ultrasonic flow meter factory or a trading company?
We are original ultrasonic flow meter manufacturer for flow instrument in nanjing.China. We warmly welcome you come and visit our ultrasonic flow meter factory. Video factory walk through is also available
How do you calibrate the flowmeter?
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters. We use the Gravimetric for the 0.2% R flowmeters.
Can you provide ultrasonic flow meter installation videos or manuals for us?
No problem, we'll provide tutorials for installation for you. For all our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.
Can I customize my logo and name on the label and the ultrasonic flow meter body?
Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.
