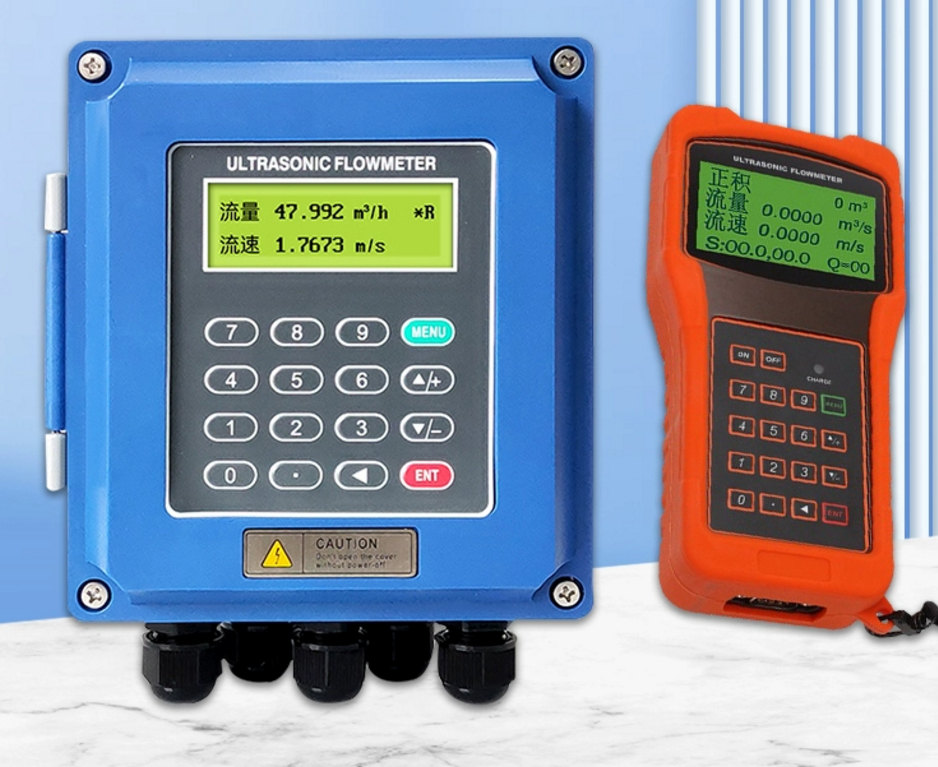

Digital Ultrasonic Flow Meter With External Clamp DN300-DN6000 Pipelines
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | IST-2000H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 200-500/set |
| Payment Terms: | T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Pipe Diameter: | DN300 ~ DN6000 | Max Flow Velocity: | 64m / S |
|---|---|---|---|
| Working Voltage: | 24V | Protection Rate: | IP65 |
| Weight: | 1kg | Grade: | Industrial |
| Liquid Level: | 0-10m | Working Temperature: | 0～60℃ |
| Serial Port: | RS485 | Pipe Diameter: | DN15~1500mm |
| Water Depth Range: | 0.02~3m, 0.02~10m | Process Pressure: | -0.1~2.0MPa |
| Communicating Protocol: | Modbus Protocol, RS485 | Transducer: | Encapsulated Design,IP68 |
| Relative Humidity: | 35 To 85% RH (non-condensing) | ||
| Highlight: | DN300 Ultrasonic Flow Meter,DN300 non contact flow meter,External Ultrasonic Flow Meter |
||
Product Description
Digital Ultrasonic Flow Meter With External Clamp DN300-DN6000 Pipelines
The external clamp ultrasonic flowmeter product adopts the principle of ultrasonic time difference to measure flow, and can achieve flow measurement in DN300~DN6000 pipelines. No need to break the tube, easy measurement. The flow rate can be measured without the need to attach the sensor to the pipeline. Installation is very convenient and fast.
Product Key Attributes
| name | Versatile DN50 Clamp On Ultrasonic Flow Meter Environmentally Friendly |
| Medium | Water, Liquid, Corrosive Liquid, Oil |
| type | Ultrasonic Meters |
| accuracy | +/-1% |
| Connectivity | Clamp-On |
| customized support | OEM, ODM |
| Power | DC24V |
| Protection Rate | IP65 |
| Grade | Industrial |
| Pipe Diameter | DN15~1500mm |
FAQs
Are you a ultrasonic flow meter factory or a trading company?
We are original ultrasonic flow meter manufacturer for flow instrument in nanjing.China. We warmly welcome you come and visit our ultrasonic flow meter factory. Video factory walk through is also available
How do you calibrate the flowmeter?
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters. We use the Gravimetric for the 0.2% R flowmeters.
Can you provide ultrasonic flow meter installation videos or manuals for us?
No problem, we'll provide tutorials for installation for you. For all our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.
Can I customize my logo and name on the label and the ultrasonic flow meter body?
Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.
