Electromagnetic Flow Meter Product Description

Electromagnetic flowmeters can be used to measure the volume flow of conductive fluids in closed pipelines, and can also be used to measure the volume flow of corrosive liquids such as strong acids and alkalis and uniform liquid-solid mixed liquids such as mud, pulp, and paper pulp. Widely used in petrochemical industry, iron and steel metallurgy, water supply and drainage, water irrigation, water treatment, environmental protection sewage measurement and control, paper making, medicine, food and other industrial and agricultural production process flow measurement and control.

Electromagnetic Flow Meter Product Parameters


Electromagnetic Flow Meter Selling Point

1. Extreme Corrosion Resistance & Long Service Life

Engineered for the harshest industrial environments, this sensor features a robust design with multiple electrode options (SS316L, Hastelloy B/C, Titanium, Tantalum, and Platinum-iridium). Whether you are measuring strong acids, alkalis, or abrasive slurries like paper pulp and mud, our flowmeter ensures a long lifespan with minimal maintenance.

2. High Precision & Reliable Measurement

With an accuracy of $pm 0.5%$ of reading, our transmitter provides the precise data necessary for critical process control. It maintains stability across a wide pressure range (0.6Mpa to 10Mpa) and is specifically designed for conductive fluids in closed pipelines, ensuring no pressure loss during operation.

3. Versatile Connectivity & Smart Integration

Stay connected with industry-standard communication protocols. This unit supports RS485 MODBUS RTU, HART, and GPRS, making it easy to integrate into existing PLC or SCADA systems. The output signal of 4-20mA ensures compatibility with most industrial controllers.

4. User-Friendly Interface & Simple Configuration

No complex external tools are required for setup. The instrument features an intuitive four-key interface and a clear LCD display.Automatic Measurement: The device enters measurement mode immediately upon power-up.Easy Calibration: Direct zero-correction and password-protected parameter settings allow for secure and straightforward field adjustments.Self-Testing: Built-in functions for checking modification records and resetting totalizers.

5. Flexible Design for Any Application

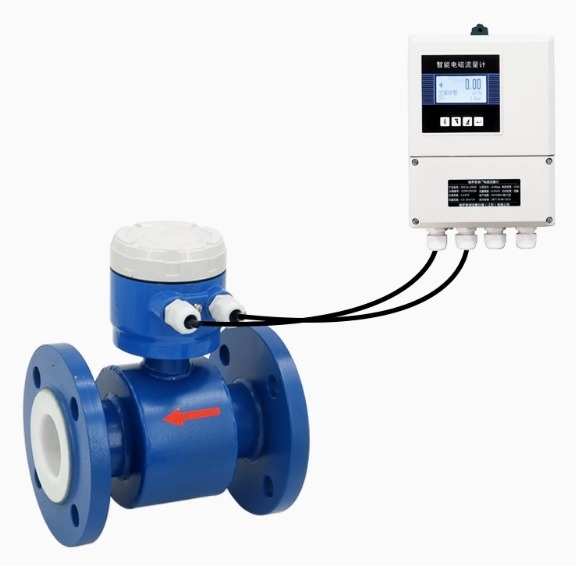

Available in both Integrated and Remote structures, our flowmeter can be customized to fit your specific site layout. With a DN150mm caliber and compliance with DIN, ANSI, and JIS flange standards, it is a "plug-and-play" solution for:


• Water treatment & Sewage control
• Petrochemical & Chemical processing
• Food, Beverage, and Medicine production
• Agricultural irrigation & Steel metallurgy


How To Use the Electromagnetic Flow Meter

When electrify, the instrument comes into measure way automatically, and under this way it can do all the functions and display data. Under the parameter setting way, user can set the parameter by the four keys.
Keys function
a) Keys’ function in self- testing way
“Down” key: Selecting displayed data on lower line in turn;
“Up” key: Selecting displayed data on higher line in turn;
“Compound” key + “Enter” key: Come into parameter setting
“Enter” key: Press it to come into the picture of select function.
Under the measure, adjust of the LCD contract is used “Compound” key + “Up” key or “Compound” key + “Down” key for several seconds;
b) Function keys for parameters setting
“Down” key: Subtract 1 from the number at cursor area;
“Up” key: Plus 1 to the number at cursor area;
“Compound” key + “Down” key: Cursor turns left;
“Compound” key + “Up” key: Cursor turns right; “Enter” key: In/Out submenu;
“Enter” key: Press for two seconds under any state and will return to automate measure way.
Note: (1)When use “Compound” key, you should press “Compound” key and “Up” or
“Down” both;

• It will return to the measure way automatically after 3 minutes when under the parameter setting way;
  • Direct select of zero correction about the flow, you can move the cursor to the left + or - , and use “Down” or “Up” to switch;

Function keys for setting parameters
To set or correct working parameters, the converter should be running in parameters setting way instead of measuring status. In measuring status, push “Compound”+“Enter” keys getting to the select of parameter and transfer password (0000), and then correct the password with one of the new passwords that are provided by manufacturer. Finally, push the “Compound”+“Enter” keys to work in Parameters Setting Way.
There are 6 Passwords in design and among them 4 for deferent operators in secret and 2 are fixed passwords for system operation.
Functions select menu

Push “Compound”+“Enter” keys to the functions select menu, push “Up” or “Down” keys to select, there are three functions:


Parameters Set
Press “Compound”+“Enter” key, it displays “Parameters Set” function. Input password. Press “Compound”+“Enter” key, it getting to Parameters Setting status.
Clr Total Rec
To push “Compound”+“Enter” keys getting to the select of parameter, then push “Up” key to “Clr Total Rec”, input the passwords. When the passwords becomes “00000”, this function is done, the gross is 0 in the instrument.
 Fact Modif Rec
To push “Compound”+“Enter” keys getting to the select of parameter, then push “Up” key to “Fact Modif Rec”(Detail consult the AppendixFive)
