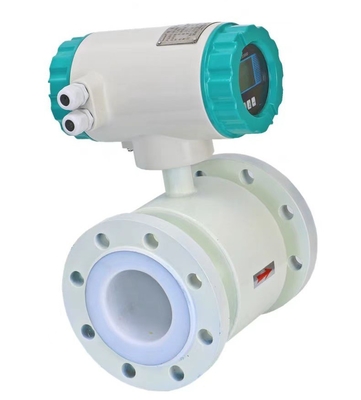

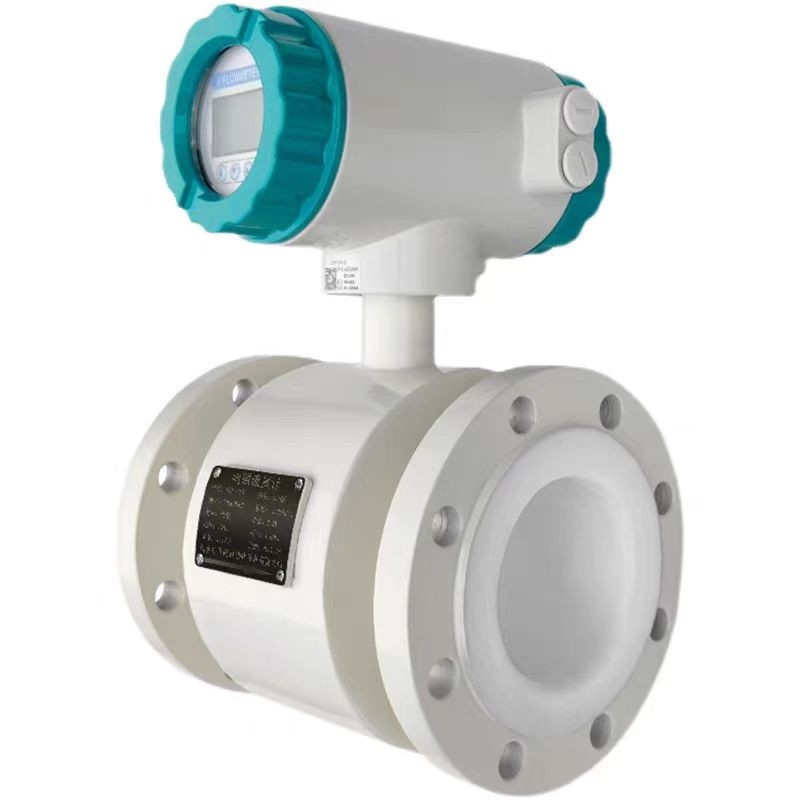

High Precision 4-20mA Magnetic Flow Meter Transmitter Electromagnetic Digital Flow Meter
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLDG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD200-800/ set |
| Packaging Details: | wooden package |
| Delivery Time: | 2-3 word days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per day |
|
Detail Information |
|||
| Caliber: | DN80 | Power Supply: | AC220V，DC24V, 3.6V |
|---|---|---|---|
| Display: | Instantaneous Flow, Total Flow, Flow Velocity | Structure Type: | Integrate Or Remote |
| Pressure: | 0.6Mpa-10Mpa | Accuracy: | ±0.5% Of Reading |
| Fluid Temperature: | -20°C~120°C | Ambient Temperature: | -20℃~60℃ |
| Environment Temperature: | -10℃～+60℃ | Output: | 4-20mA |
| Communication: | RS485 MODBUS RTU, HART, GPRS | Electrode: | SS316L, Hastelloy B, Hastelloy C, Titannium, Tantanlum, Platinum-iridium |
| Flange Standard: | DIN, ANSI, JIS | ||
| Highlight: | High Precision Magnetic Flow Meter Transmitter,High Precision Electromagnetic Digital Flow Meter,4mA Magnetic Flow Meter Transmitter |
||
Product Description
DN80 Smart Electromagnetic Flow Meter: High-Precision ±0.5% Accuracy with 4-20mA Output
product introduction
Our DN80 Electromagnetic Flow Meter is a high-performance, industrial-grade solution designed for precise liquid measurement. Built with advanced electromagnetic induction technology, this magmeter provides exceptional reliability for water treatment, chemical processing.
1. High-Precision Measurement (±0.5% Accuracy)
Accuracy is critical in industrial automation. This electromagnetic flow meter features a sophisticated signal processing algorithm that ensures a stable measurement with an accuracy of ±0.5% of reading.
Reliable Data: Minimized drift and high repeatability for billing and process control.
Wide Range: Maintains precision across a broad flow velocity range, ensuring every drop is accounted for.
2. Standard DN80 (3-Inch) Robust Design
The DN80 (80mm) size is the industry standard for medium-sized pipelines.
Full Bore Construction: No moving parts inside the pipe, meaning zero pressure loss and no risk of mechanical wear.
Corrosion Resistance: Available with PTFE or Rubber linings and SS316L or Hastelloy electrodes to handle everything from tap water to corrosive acids.
3. Seamless Integration (4-20mA & Smart Output)
Designed for the modern smart factory, our electromagnetic flow transmitter offers versatile connectivity:
Industry Standard 4-20mA Output: Easy integration with PLC, DCS, and SCADA systems for real-time monitoring.
Pulse & Digital Communication: Supports Pulse output for totalizer functions and RS485 MODBUS / HART for remote configuration and diagnostics.
Technical Specifications
| name | High Precision 4-20mA Magnetic Flow Meter Transmitter Electromagnetic Digital Flow Meter |
| Nominal Diameter | DN80 (3 Inch) |
| Accuracy | ±0.5% of reading |
| Output Signal | 4-20mA |
| Communication | RS485 Modbus RTU / HART |
| Power Supply | AC220V / DC24V / 3.6V Battery Operated |
| Lining Material | PTFE / Neoprene / F46 |
| Electrode Material | SS316L / Hastelloy C / Titanium / Tantalum |
| Protection Class | IP65 (Standard) / IP68 (Waterproof) |
Setting Parameters in Menu
There are 54 parameters of L_MagB, user can set every parameter. The List of Parameters is shown below:
Setting Parameters in Menu
| Code | Parameter words | Setting Way | Grades | Range |
| 1 | Language | Select | 2 | English |
| 2 | Comm Addres | Set count | 2 | 0～99 |
| 3 | Baud Rate | Select | 2 | 300～38400 |
| 4 | Snsr Size | Select | 2 | 3～3000 |
| 5 | Flow Unit | Select | 2 |
L/h,L/m,L/s,m3/h, m3/m,m3/s |
| 6 | Flow Range | Set count | 2 | 0～99999 |
| 7 | Flow Rspns | Select | 2 | 1～50 |
| 8 | Flow Direct | Select | 2 | Plus/ Reverse |
| 9 | Flow Zero | Set count | 2 | 0～±9999 |
| 10 | Flow Cutoff | Set count | 2 | 0～599.99% |
| 11 | Cutoff Ena | Select | 2 | Enable/Disable |
| 12 | Total Unit | Select | 2 |
0.001m3～1m3 , 0.001L～1L,
|
| 13 | SegmaN Ena | Select | 2 | Enable/Disable |
| 14 | Analog Type | Select | 2 | 0～10mA /4～20mA |
| 15 | Pulse Type | Select | 2 | Freque / Pulse |
| 16 | Pulse Fact | Select | 2 |
0.001m3～1m3 , 0.001L～1L, |
| 17 | Freque Max | Select | 2 | 1～ 5999 HZ |
| 18 | Mtsnsr Ena | Select | 2 | Enable/Disable |
| 19 | Mtsnsr Trip | Set count | 2 | 59999 % |
| 20 | Alm Hi Ena | Select | 2 | Enable/Disable |
| 21 | Alm Hi Val | Set count | 2 | 000.0～ 599.99 % |
| 22 | Alm Lo Ena | Select | 2 | Enable/Disable |
| 23 | Alm Lo Val | Set count | 2 | 000.0～599.99 % |
| 24 | Sys Alm Ena | Select | 2 | Enable/Disable |
| 25 | Clr Sum Key | Set count | 3 | 0～99999 |
| 26 | Snsr Code1 | User set | 4 | Finished Y M |
| 27 | Snsr Code2 | User set | 4 | Product number |
| 28 | Field Type | Select | 4 | Type1,2,3 |
| 29 | Sensor Fact | Set count | 4 | 0.0000～5.9999 |
| 30 | Line CRC Ena | Select | 2 | Enable/Disable |
| 31 | Lineary CRC1 | User set | 4 | Set Velocity |
| 32 | Lineary Fact 1 | User set | 4 | 0.0000～1.9999 |
| 33 | Lineary CRC2 | User set | 4 | Set Velocity |
| 34 | Lineary Fact 2 | User set | 4 | 0.0000～1.9999 |
| 35 | Lineary CRC3 | User set | 4 | Set Velocity |
| 36 | Lineary Fact 3 | User set | 4 | 0.0000～1.9999 |
| 37 | Lineary CRC4 | User set | 4 | Set Velocity |
| 38 | Lineary Fact4 | User set | 4 | 0.0000～1.9999 |
| 39 | FwdTotal Lo | Correctable | 5 | 00000～99999 |
| 40 | FwdTotal Hi | Correctable | 5 | 00000～9999 |
| 41 | RevTotal Lo | Correctable | 5 | 00000～99999 |
| 42 | RevTotal Hi | Correctable | 5 | 00000～9999 |
| 43 | PlsntLmtEna | Select | 3 | Enable/Disable |
| 44 | PlsntLmtVal | Select | 3 | 0.010～0.800m/s |
| 45 | Plsnt Delay | Select | 3 | 400～2500ms |
| 46 | Pass Word 1 | User correct | 5 | 00000～99999 |
| 47 | Pass Word 2 | User correct | 5 | 00000～99999 |
| 48 | Pass Word 3 | User correct | 5 | 00000～99999 |
| 49 | Pass Word 4 | User correct | 5 | 00000～99999 |
| 50 | Analog Zero | Set count | 5 | 0.0000～1.9999 |
| 51 | Anlg Range | Set count | 5 | 0.0000～3.9999 |
| 52 | Meter Fact | Set count | 5 | 0.0000～5.9999 |
| 53 | MeterCode 1 | Factory set | 6 | Finished Y /M |
| 54 | MeterCode 2 | Factory set | 6 | Product Serial No |
Parameters of converters can decide the running status, process and output ways as well as state of output. Correct option and setting of parameters can keep the converters running optimally and get higher accuracies of output bother in display and in measurement.
There are 6 grades of passwords for setting parameters function. Grades 1 to grade 5 of passwords are for users and grade 6 of password is for manufacturer. Users can reset their passwords of grades 1~4 in grade 5.
Users can check converters parameters in any grade of password. However, if users want to change parameters pf converters, deferent grade of parameters have to be used by the users.
Grade 1 of password (set by manufacturer as 00521): users can only read parameter.
Grade 2 of password (set by manufacturer as 03210): users can change 1~24 parameters.
Grade 3 of password (set by manufacturer as 06108): users can change 1~25parameters.
Grade 4 of password (set by manufacturer as 07206): users can change 1~38parameters.
Grade 5 of password (Fixed): users can change 1~52 parameters.
Password Grade 5 can be set by skilled users. Grade 4 is mainly used for resetting total volume in password. Grades 1~3 can be set by any one who can be chosen by users.
