Advanced DN150 Metal Tube Rotameter Magnetic Coupling System Design Accurate
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | INSTE H250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 200$-1000$ |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Explosion Proof Grade: | Exia II CT5Ga, Exd II BT5Gb | Connection Form: | Stabndard:DIN2501 Standard Flange |
|---|---|---|---|
| Port: | Shenghai/ Shenzhen | Display Type: | Analog |
| Installation Height: | 350mm | Output: | 4-20mA |
| Scale Units: | L/min | Precision Class: | 1.5 |
| Applicable Medium: | Gas, Liquid | Exportation: | Two-wire System 4~20MA |
| Measurement Range: | 0-100 L/min | Connection: | Flange |
| Flow Direction: | Bottom To Top | Warranty: | 18 Months |
| Temperature Rating: | Max. 100°C | ||
| Highlight: | DN150 Metal Tube Rotameter,DN150 metal tube flowmeter,Accurate Metal Tube Rotameter |
||
Product Description

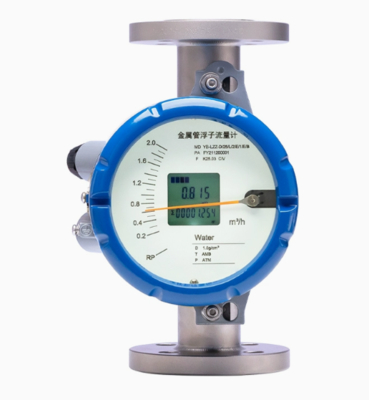

Advanced Metal Tube Rotameter Magnetic Coupling System Design Accurate DN150
The Advanced DN150 Metal Tube Rotameter is a heavy-duty variable area flow meter engineered for high-volume industrial flow measurement. Specifically designed for DN150 (6-inch) pipelines, this meter utilizes a sophisticated non-contact magnetic coupling system to provide accurate and real-time flow data for liquids, gases, and steam in the most demanding environments.
Constructed with a robust all-metal body, the DN150 series eliminates the risks associated with glass tube meters, making it the ideal choice for high-pressure, high-temperature, and hazardous industrial applications.
| Measuring range |
Water (20ºC) 16~150000 l/h. Air(0.1013MPa 20ºC) 0.5~4000 m3/h. |
| Range ratio | 10:1(Special type 20:1). |
| Accuracy class | 2.5(Special type 1.5% or 1.0%). |
| Working pressure |
DN15~DN50 PN16MPa (Special type 25MPa). DN80~DN150 PN10MPa (Special type 16MPa). Pressure rating of jacket 1.6MPa. |
| Medium temperature |
Normalized type -80ºC~+220ºC. High-temperature type 300ºC. Lined with FEP type ≤85ºC. |
| Ambient temperature |
-40ºC~+120ºC(Remote display without LCD≤85ºC). (Remote display with LCD≤70ºC). |
| Dielectric viscosity |
1/4" NPT, 3/8" NPT 1/2" NPT≤5mPa.s 3/4" NPT,1" NPT ≤250mPa.s |
| Output |
Standard signal: two-wire system 4 ~ 20mA (with HART communication). Standard signal: three-wire system 0 ~ 10mA. Alarm signal:1.Two-way relay output. 2.One-way or two-approach switches . Pulse signal output: 0-1KHz isolated output. |
| Process connection |
Standard type:24VDC±20%. AC type:220VAC(85~265VAC) (optional). |
| Connection mode |
Flange Thread Tri-clamp |
| Levels of protection | IP65/IP67. |
| Ex-mark | Intrinsically safe:ExiaIICT3~6. Exd type:ExdIICT4~6. |
Features
1. Robust all-metal structure design.
2. Suitable for gas and liquid measurement in various industries.
3. Cone-shape measuring tube design,which has wide measuring range and good linearity.
4. Wetted parts material are optional: SS304, SS316L, FEP, Hastelloy C, Titanium.
5. Adopt advanced magnetic coupling system design, improve the accuracy and stability.
6. The upper row displays the instantaneous flow, the lower row displays the total flow.
7. For the digital LCD display type, the flow range of the instantaneous flow can be corrected onsite based on the different measuring medium.
8. It adopts advanced six level data backup technology,data of total flow can be saved automatically when power-off,(the total flow sending period id 0.3s).
9. Besides AC/DC power supply, it supports battery power supply function.
10. No need to open the cover, it can be operated by a magnetic pen; the key operation function is also available.
11. Through the HART protocol, you can use the handheld operator or host computer software to perform partial or full configuration operations on the flowmeter.
