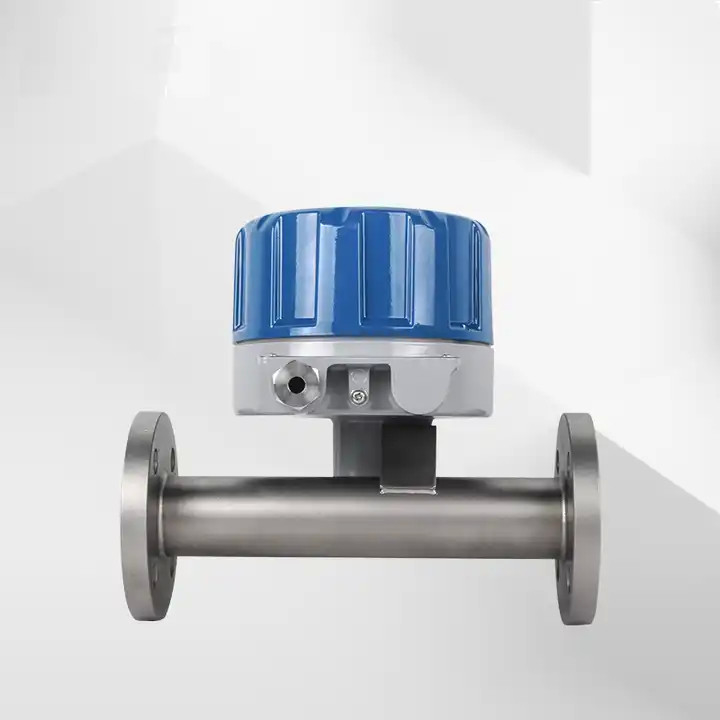

4-20mA Precise DN150 Metal Rotameter Low Maintenance
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | INSTE H250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 200$-1000$ |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Explosion Proof Grade: | Exia II CT5Ga, Exd II BT5Gb | Connection Form: | Stabndard:DIN2501 Standard Flange |
|---|---|---|---|
| Port: | Shenghai/ Shenzhen | Display Type: | Analog |
| Installation Height: | 350mm | Output: | 4-20mA |
| Scale Units: | L/min | Precision Class: | 1.5 |
| Applicable Medium: | Gas, Liquid | Exportation: | Two-wire System 4~20MA |
| Measurement Range: | 0-100 L/min | Connection: | Flange |
| Flow Direction: | Bottom To Top | Warranty: | 18 Months |
| Temperature Rating: | Max. 100°C | ||
| Highlight: | DN150 Metal Tube Rotameter,DN150 Metal Tube Float Flowmeter,Widely Use Metal Tube Rotameter |
||
Product Description
Precise Metal Tube Rotameter Widely Use DN15-DN150 Low Maintenance
The Precise DN150 Metal Tube Rotameter is a heavy-duty, variable area flow meter engineered for high-volume industrial applications. Designed for DN150 (6-inch) pipelines, this instrument combines the ruggedness of an all-metal construction with the intelligence of a 4-20mA digital transmitter.
Whether you are measuring water, industrial gases, or corrosive liquids, this rotameter provides a stable, accurate, and low-maintenance flow monitoring solution that excels where glass-tube meters cannot.
Basic Info.
Packaging & Delivery
Features
1. Wetted parts material are optional: SS304, SS316L, FEP, Hastelloy C, Titanium.
2. Adopt advanced magnetic coupling system design, improve the accuracy and stability.
3. The upper row displays the instantaneous flow, the lower row displays the total flow.
4. For the digital LCD display type, the flow range of the instantaneous flow can be corrected onsite based on the different measuring medium.
