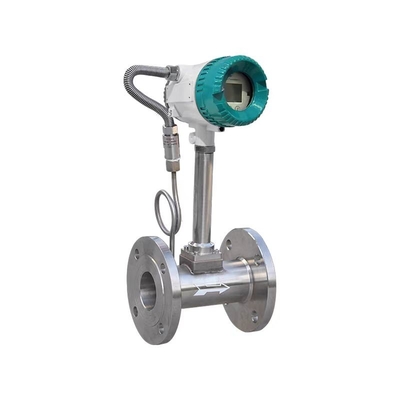

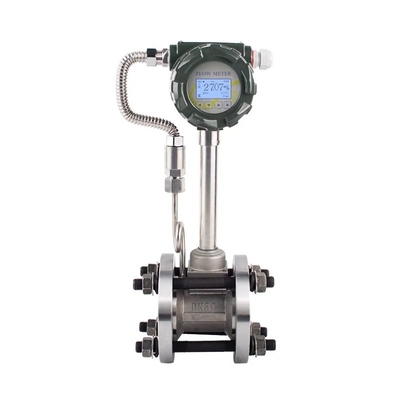

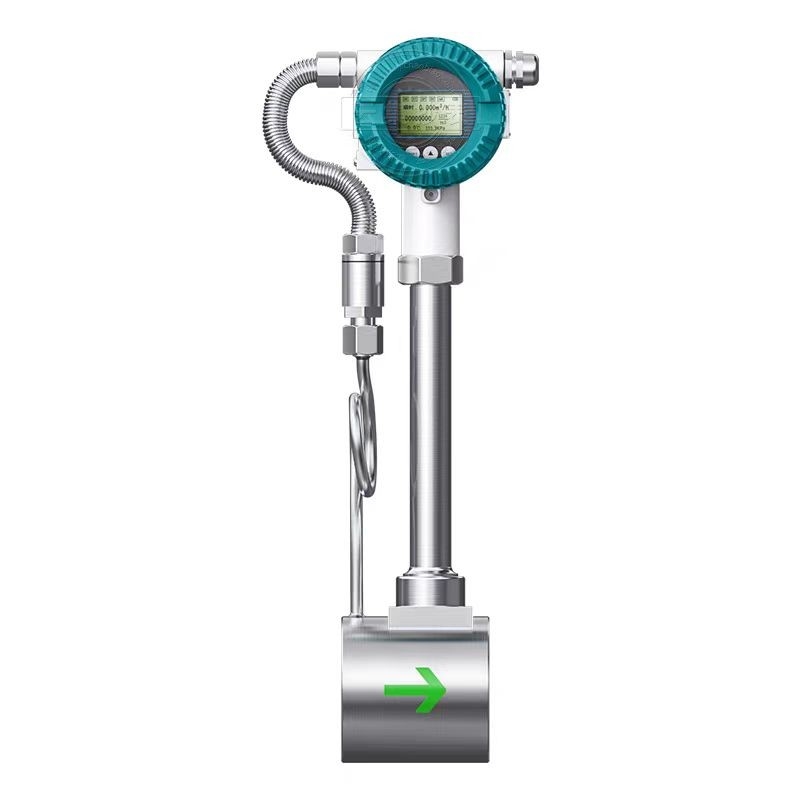

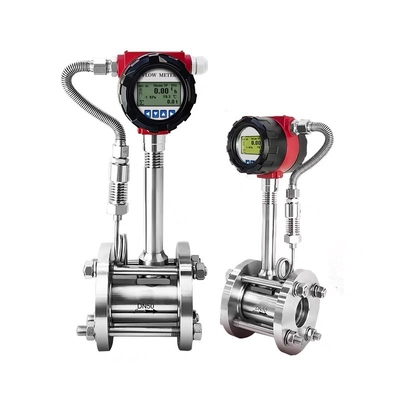

High Sensitivity DN250-300 Vortex Flow Meter Compact For Accurate Detection
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLUGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 400$/set |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50sets per day |
|
Detail Information |
|||
| Working Pressure: | Pipeline: DN10~DN65: ≤ 2.5MPa | Applicable Medium: | Gas, Liquid, Steam |
|---|---|---|---|
| Primary Measured Value: | Flow Rate | Connection: | Flange: DN15-DN300;Wafer: DN15-DN300 |
| Installation: | Screw Thread / Flange / Tri-clamp | Communication Interface: | RS485 |
| Explosion Rating: | ExdIIBT6 | Packing: | Wooden Box |
| Temperature: | -20°C - +160 °C | Model: | VF |
| Skype: | Summer.cap39 | Pressure: | 1.6 Mpa ,2.5Mpa ,4.0Mpa (Special) |
| Communication: | Hart | Mediumtemperature: | -40~320℃ |
| Lining Material: | PTFE | ||
| Highlight: | High Sensitivity Vortex Flow Meter,High Sensitivity flow transmitter vortex,Compact Vortex Flow Meter |
||
Product Description
High Sensitivity DN250-300 Vortex Flow Meter Compact For Accurate Detection
Our DN250-DN300 Vortex Flow Meter is specifically engineered for high-precision measurement in large-diameter industrial pipelines. Despite its large caliber, this high sensitivity sensor features a compact design that allows for easier installation in tight spaces compared to traditional flow meters. Utilizing the Karman vortex principle, it provides accurate detection of steam, compressed air, and large-volume liquids with zero moving parts, ensuring long-term reliability and minimal pressure loss in high-flow applications.
The vortex flowmeter produces a velocity flowmeter based on the Karman vortex principle for measurement and metering of conventional gases, vapors and liquids. The vortex flow sensor has high precision and a wide range ratio. It has no moving parts in use, which can improve mechanical stability and reduce maintenance. Vortex is almost unaffected by the temperature, pressure and composition of the medium when measuring the working volume, so it is convenient for the calibration production of the instrument. Therefore, the vortex flow sensor is widely used in production and life.
When a triangular column type vortex generator is provided in the fluid, regular vortices are alternately generated from both sides of the vortex generator. These vortices are called Karman vortices, and the vortex rows are arranged asymmetrically downstream of the vortex generator. Vortex is produced according to this principle. The vortex is generated by the generating body, and the high-sensitivity sensor detects the number of vortices. The number of vortices generated in a certain range is proportional to the flow rate, so the flow rate can be calculated by a precision processor.
| Instrument caliber(mm) | liquid | gas | ||
| Measuring range(m3/h) | Output frequency range(Hz) | Measuring range(m3/h) | Output frequency range(Hz) | |
| 15 | 0.3～5 | 24～400 | 4～20 | 352～1761 |
| 20 | 0.6～10 | 23～382 | 6～30 | 254～1273 |
| 25 | 1.2～16 |
21～320
|
8～50 | 161～1112 |
| 32 | 1.8～20 | 18～200 | 10～100 | 97～1172 |
| 40 | 2～40 | 10～190 | 20～200 | 134～1018 |
| 50 | 3～60 | 8～150 | 35～350 | 87～952 |
| 65 | 4～85 | 6～120 | 45～450 | 71～764 |
| 80 | 6.5～130 | 4.1～82 | 86～1100 | 54～696 |
| 100 | 15～220 | 4.7～69 | 133～1700 | 42～548 |
| 125 | 20～350 | 3.2～57 | 150～2000 | 26～346 |
| 150 | 30～450 | 2.8～43 | 347～4000 | 34～392 |
| 200 | 45～800 | 2～31 | 560～8000 | 23～326 |
| 250 | 65～1250 | 1.5～25 | 890～11000 | 18.5～229 |
| 300 | 95～2000 | 1.2～24 | 1360～18000 | 16～216 |
| (300) | 100～1500 |
5.5～87
|
1560～15600 | 85～880 |
| (400) | 180～3000 | 5.6～87 | 2750～27000 | 85～880 |
| (500) | 300～4500 | 5.6～88 | 4300～43000 | 85～880 |
| (600) | 450～6500 | 5.7～89 | 6100～61000 | 85～880 |
| (800) | 750～10000 | 5.7～88 | 11000～110000 | 85～880 |
| (1000) | 1200～1700 | 5.8～88 | 17000～170000 | 85～880 |
| >(1000) | protocol | protocol
|
||
Technical Advantages for Large Caliber Pipelines
-
High Sensitivity Detection: Optimized sensor technology allows for the capture of low-flow velocities even in DN250 and DN300 pipes, ensuring comprehensive data monitoring from off-peak to full capacity.
-
Compact & Space-Saving: The streamlined body design reduces the overall installation footprint, a critical factor for retrofitting existing large-scale piping systems.
-
No-Moving-Parts Durability: Eliminates mechanical wear and potential failure points, providing a low-maintenance solution for critical industrial processes.
-
Excellent Stability: Measurement accuracy remains unaffected by changes in fluid density, temperature, or pressure, delivering a stable vortex signal for precision control.
-
Minimal Pressure Drop: The efficient internal structure ensures high flow rates with minimal energy loss, optimizing the efficiency of your pumping or boiler systems.
Industrial Applications & Scenarios
The DN250-300 Vortex Flow Transmitter is widely used for:
-
Main Steam Pipelines: Accurate metering for district heating and large-scale industrial steam distribution.
-
Compressed Air Systems: Monitoring the discharge of large compressor houses to optimize energy consumption.
-
Industrial Water Distribution: High-volume flow measurement for cooling towers and municipal water supply.
-
Natural Gas Monitoring: Precise detection for industrial furnaces and large-scale gas supply lines.
Why Choose Our Large Caliber Vortex Meter?
For large-scale operations, accuracy and stability are paramount. Our High Sensitivity Vortex Flow Meter combines advanced digital signal processing (DSP) with a rugged structural design. It offers a wide range ratio and superior anti-vibration performance, ensuring your data is accurate even in noisy industrial environments. The compact design and digital interface make it a future-proof investment for Smart Factory and Energy Management System (EMS) integrations.
