DN200 Air Vortex Flow Sensor Digital Vortex Type Flow Transmitter For Industrial Air Measurement
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLUGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 300$/set |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50sets per day |
|
Detail Information |
|||
| Temperature: | -40~350℃ | Power Supply: | 24VDC, 110-240VAC |
|---|---|---|---|
| Pressure Range: | 0-40 Bar | Medium: | Steam, Gas, Liquid |
| Velocity Range: | 0.7~7m/s For Liquid, 7~40m/s For Gas | Connection Type: | Flange |
| Product Naem: | Air Flow Meter | Basic Error: | ±1% Of The Indicating Value |
| Sort: | Hart Pulse Alarm Vortex Flow Meter | Warranty: | 12 Months |
| Celphone: | 18878952222 | Skype: | Summer.cao39 |
| Process Connection: | Flanged, Threaded, Welded | Output Signal: | 4-20mA, Pulse, HART |
| Language: | Chinese, English | ||
| Highlight: | Digital Vortex Type Flow Transmitter,Digital Air Vortex Sensor,DN200 Vortex Type Flow Transmitter |
||
Product Description

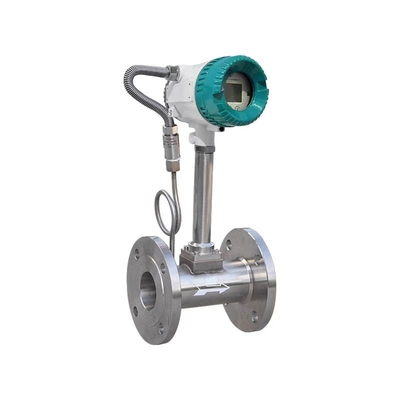

DN200 Air Vortex Flow Sensor Digital Vortex Type Flow Transmitter For Industrial Air Measurement
Our DN200 Air Vortex Flow Sensor is designed for high-precision, easy installation in large industrial pipelines. Featuring a digital flow transmitter interface, it provides stable vortex type measurement for compressed air and gases with strong anti-interference capabilities.
The vortex flowmeter produces a velocity flowmeter based on the Karman vortex principle for measurement and metering of conventional gases, vapors and liquids. The vortex flow sensor has high precision and a wide range ratio. It has no moving parts in use, which can improve mechanical stability and reduce maintenance. Vortex is almost unaffected by the temperature, pressure and composition of the medium when measuring the working volume, so it is convenient for the calibration production of the instrument. Therefore, the vortex flow sensor is widely used in production and life.
Key Features & Technical Advantages
-
Precision Measurement for DN200 Pipes: Specifically optimized for DN200 (8-inch) pipelines, providing accurate flow data even in high-velocity air applications.
-
Advanced Digital Signal Processing (DSP): Equipped with a digital transmitter, the sensor features superior anti-interference capabilities against pipeline vibration and pressure fluctuations.
-
No Moving Parts: The internal structure has no mechanical wear parts, which significantly enhances the mechanical stability and extends the service life compared to turbine meters.
-
Wide Range Ratio: Offers an excellent turndown ratio, allowing for precise metering of both low-flow leakage and peak-demand industrial air consumption.
-
Temperature & Pressure Compensation: Available with integrated sensors to provide real-time compensation, ensuring the standard volume flow accuracy regardless of environmental changes.
Technical Specifications
| name | DN200 Air Vortex Flow Sensor Digital Vortex Type Flow Transmitter For Industrial Air Measurement |
| keyword | digital vortex flow meter |
| Pipe Diameter | DN200 (200mm / 8 Inch) |
| Medium | Steam, Gas, Liquid |
| Output Signal | 4-20mA, pulse, HART |
| Language | Chinese, English |
Industrial Applications
As a versatile industrial air measurement tool, the DN200 Vortex Flowmeter is widely implemented in:
-
Compressed Air Systems: Monitoring main pipe flow to optimize compressor efficiency and detect leaks.
-
Boiler & Steam Systems: Precise metering of saturated or superheated steam for energy cost allocation.
-
Chemical & Gas Processing: Measuring nitrogen or argon flow in large-scale manufacturing lines.
-
HVAC & Building Automation: Large-scale ventilation and air distribution monitoring in industrial facilities.
Why Choose Our Vortex Type Flow Transmitter?
Choosing the right flow transmitter is critical for operational efficiency. Our Vortex Flow Sensor stands out due to its high reliability and economical maintenance. The digital display provides instantaneous flow rate and totalized flow at a glance, making it easy for on-site operators to manage data. Designed to meet international industrial standards, it ensures your flow measurement system remains accurate, digital-ready, and durable.
