DN15-DN1000 Vortex Flow Meter Karman Principle Gas Liquid Steam Sensor
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLUGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 300$/set |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50sets per day |
|
Detail Information |
|||
| Keyword: | Stainless Steel Material Flow Meter | Materials: | Sensor And Flange SS304 |
|---|---|---|---|
| Measurement Range: | 0.5-100 M/s | Port: | Shanghai Or Other |
| Shell Material: | Cast Iron, Cast Steel, Stainless Steel | Protection Class: | IP65 |
| Range Ratio: | 1:10 ； 1:15 | Process Connection: | Flange |
| Basic Error: | ±1% Of The Indicating Value | Accuracy: | +/- 1% Of Reading |
| Medium: | Steam, Gas, Liquid | Application: | Liquid, Gas Or Hot Steam |
| Operating Condition: | Temperature: -25℃~60℃ Humidity: 5%~9 | Applicable Medium: | Gas, Liquid, Steam |
| Normally: | - 40 ℃ ~ 350 ℃ | ||
| Highlight: | High Precision Vortex Flow Meter,High Precision vortex air flow sensor,Convenient Vortex Flow Meter |
||
Product Description

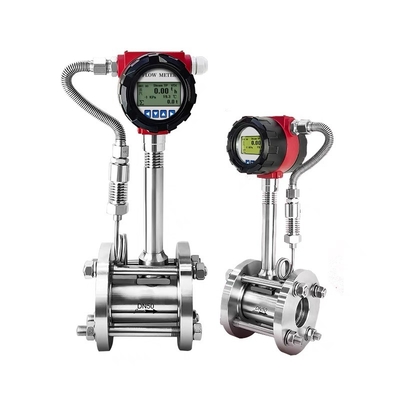

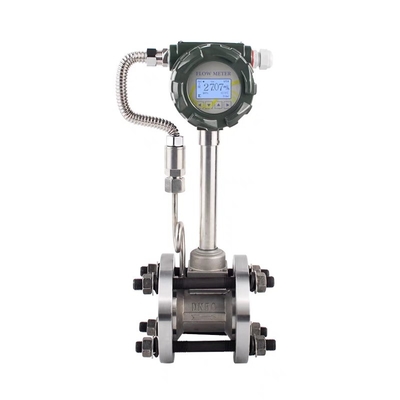

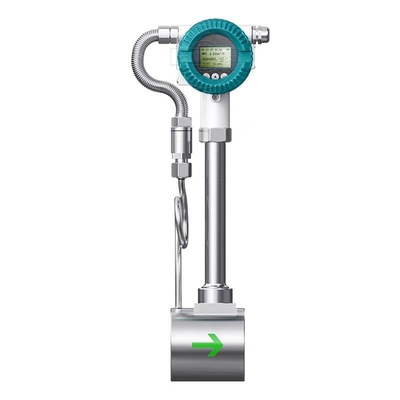

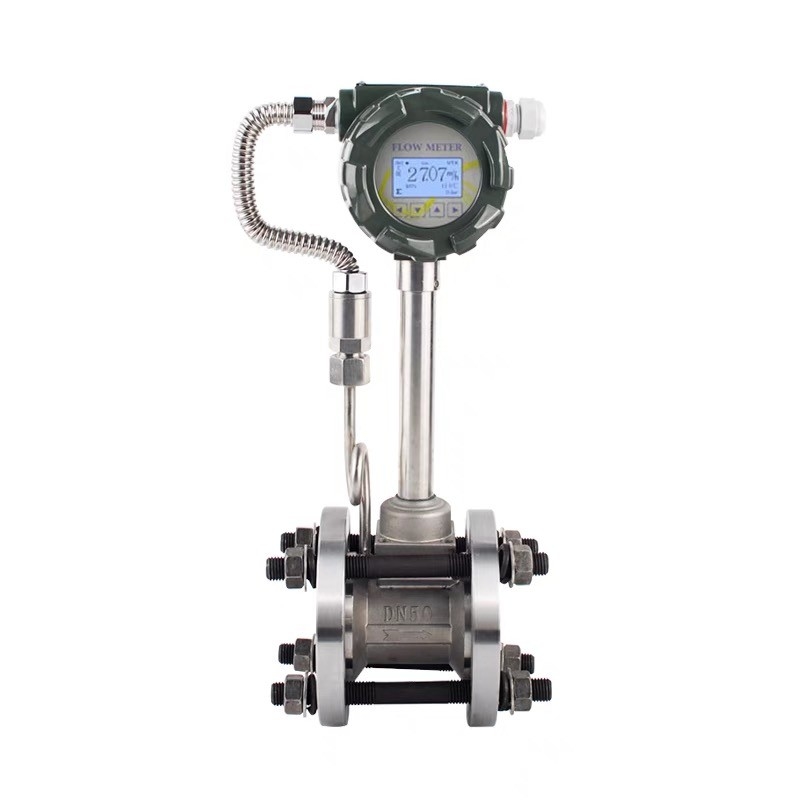

DN15-DN1000 Vortex Flow Meter Karman Principle Gas Liquid Steam Sensor
The vortex flowmeter produces a velocity flowmeter based on the Karman vortex principle for measurement and metering of conventional gases, vapors and liquids. The vortex flow sensor has high precision and a wide range ratio. It has no moving parts in use, which can improve mechanical stability and reduce maintenance. Vortex is almost unaffected by the temperature, pressure and composition of the medium when measuring the working volume, so it is convenient for the calibration production of the instrument. Therefore, the vortex flow sensor is widely used in production and life.
When a triangular column type vortex generator is provided in the fluid, regular vortices are alternately generated from both sides of the vortex generator. These vortices are called Karman vortices, and the vortex rows are arranged asymmetrically downstream of the vortex generator. Vortex is produced according to this principle. The vortex is generated by the generating body, and the high-sensitivity sensor detects the number of vortices. The number of vortices generated in a certain range is proportional to the flow rate, so the flow rate can be calculated by a precision processor.
Our DN15-DN1000 Vortex Flow Meter series is a versatile, high-reliability solution for measuring the velocity and volume flow of conventional gases, vapors (steam), and liquids. Utilizing the advanced Karman Vortex Street principle, this sensor converts fluid oscillations into stable digital signals. With a wide caliber range from 15mm up to 1000mm, it is engineered to excel in diverse industrial environments, offering high precision, a wide turndown ratio, and a maintenance-free design due to its lack of moving parts.
Advanced Karman Vortex Principle for Superior Stability
Inside the meter body, a triangular vortex generator is strategically placed to create alternating Karman vortices. The frequency of these vortices is directly proportional to the flow rate, which is then captured by a high-sensitivity sensor.
Precision Processing: Calculated by a high-speed digital processor for real-time accuracy.
Media Independence: Measurement is virtually unaffected by changes in the medium's temperature, pressure, density, or composition.
Mechanical Integrity: The no-moving-parts design improves mechanical stability and drastically reduces the need for frequent calibration.
| Instrument caliber(mm) | liquid | gas | ||
| Measuring range(m3/h) | Output frequency range(Hz) | Measuring range(m3/h) | Output frequency range(Hz) | |
| 15 | 0.3～5 | 24～400 | 4～20 | 352～1761 |
| 20 | 0.6～10 | 23～382 | 6～30 | 254～1273 |
| 25 | 1.2～16 | 21～320
| 8～50 | 161～1112 |
| 32 | 1.8～20 | 18～200 | 10～100 | 97～1172 |
| 40 | 2～40 | 10～190 | 20～200 | 134～1018 |
| 50 | 3～60 | 8～150 | 35～350 | 87～952 |
| 65 | 4～85 | 6～120 | 45～450 | 71～764 |
| 80 | 6.5～130 | 4.1～82 | 86～1100 | 54～696 |
| 100 | 15～220 | 4.7～69 | 133～1700 | 42～548 |
| 125 | 20～350 | 3.2～57 | 150～2000 | 26～346 |
| 150 | 30～450 | 2.8～43 | 347～4000 | 34～392 |
| 200 | 45～800 | 2～31 | 560～8000 | 23～326 |
| 250 | 65～1250 | 1.5～25 | 890～11000 | 18.5～229 |
| 300 | 95～2000 | 1.2～24 | 1360～18000 | 16～216 |
| (300) | 100～1500 | 5.5～87
| 1560～15600 | 85～880 |
| (400) | 180～3000 | 5.6～87 | 2750～27000 | 85～880 |
| (500) | 300～4500 | 5.6～88 | 4300～43000 | 85～880 |
| (600) | 450～6500 | 5.7～89 | 6100～61000 | 85～880 |
| (800) | 750～10000 | 5.7～88 | 11000～110000 | 85～880 |
| (1000) | 1200～1700 | 5.8～88 | 17000～170000 | 85～880 |
| >(1000) | protocol | protocol
| ||
Why Choose Our Vortex Flow Transmitter?
Wide Range Ratio: Capable of measuring a broad spectrum of flow velocities with a consistent accuracy of up to ±1.0%.
Robust Construction: Available in Stainless Steel 304/316L to withstand corrosive media and high-temperature steam (up to +350°C).
Digital Integration: Supports multiple output protocols (4-20mA, Pulse, RS485 Modbus) for seamless PLC/SCADA integration.
Energy Efficiency: Low pressure drop design helps reduce energy consumption in large-scale piping systems.
