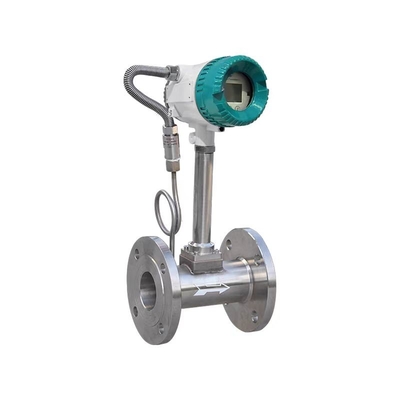

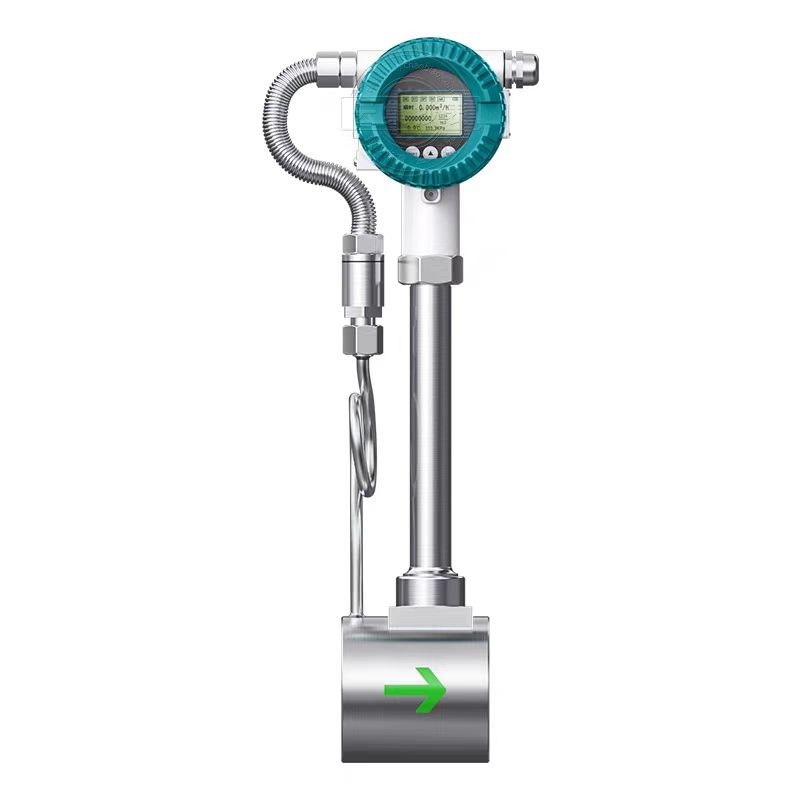

High Stability DN80-DN100 Vortex Flow Meter With Multiple Instrument Caliber Options
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLUGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 300$/set |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50sets per day |
|
Detail Information |
|||
| Primary Measured Value: | Flow Rate | Communication Interface: | RS485 |
|---|---|---|---|
| Fluid Temperature: | -40~320℃ | Life: | 5-7 Years |
| Repeatability: | ±0.1% | Pressure: | 1.6-4.0MPa |
| Cel: | 18878952222 | Basic Error: | ±1% Of The Indicating Value |
| Delivery: | Express, Ship, Air | Velocity Range: | 0.7~7m/s For Liquid, 7~40m/s For Gas |
| Medium Temperature: | -40 To 350 Degrees Celsius | Process Temperature: | T3 Level: -20...+350°C |
| Output Signal: | 4-20 MA, Pulse, Frequency | Sort: | Wafer Vortex Flowmeter |
| Nominal Diameter: | 20~300 | ||
| Highlight: | DN80 Vortex Flow Meter,DN80 vortex air flow sensor,DN100 Vortex Flow Meter |
||
Product Description
High Stability DN80-DN100 Vortex Flow Meter With Multiple Instrument Caliber Options
Vortex is produced according to this principle. The vortex is generated by the generating body, and the high-sensitivity sensor detects the number of vortices. The number of vortices generated in a certain range is proportional to the flow rate, so the flow rate can be calculated by a precision processor.
Our High Stability Vortex Flow Meter series offers versatile measurement solutions for DN80 and DN100 (3" to 4") industrial pipelines. Built on the advanced Karman vortex street principle, these meters are designed to provide consistent, accurate readings for steam, gas, and liquids.
Technical Advantages & Performance Features
-
Optimized for Mid-to-Large Pipes (DN80-DN100): Specifically engineered to maintain high precision in 80mm and 100mm diameters, balancing sensitivity with a robust structural design.
-
Exceptional Long-Term Stability: The sensor's no-moving-parts architecture eliminates mechanical wear and tear, ensuring that the calibration remains stable even under continuous industrial operation.
-
Broad Media Compatibility: A single vortex flow transmitter capable of high-accuracy metering for saturated steam, compressed air, natural gas, and low-viscosity industrial fluids.
-
Advanced Vibration Rejection: Equipped with digital signal processing (DSP) to filter out pipeline noise and mechanical vibrations, ensuring a clean and stable vortex signal.
-
High Rangeability (Turndown Ratio): Provides precise measurement across a wide flow range, from low-velocity off-peak flows to high-capacity industrial demands.
Technical Specifications DN80-100 Series
| Available Calibers | DN80 (3"), DN100 (4") |
| Output Signal | 4-20 mA, pulse, frequency |
| Communication Interface | RS485 |
| Fluid Temperature | -40~320℃ |
| name | High Stability DN80-DN100 Vortex Flow Meter With Multiple Instrument Caliber Options |
| keyword | High Stability DN80-DN100 Vortex Flow Meter |
Targeted Industrial Applications
The DN80-DN100 Vortex Flowmeter is a critical asset for:
-
District Heating & Power Plants: Reliable metering of main steam lines for energy efficiency monitoring.
-
Petrochemical Facilities: Precise measurement of technical gases like Nitrogen and Oxygen in large-scale production.
-
Water Distribution & Treatment: Monitoring large-volume water flow in industrial cooling and municipal supply systems.
-
Compressed Air Auditing: High-capacity flow measurement for main compressor house discharge lines.
Why Invest in Our Multi-Caliber Vortex Flowmeter?
Choosing the right flow measurement equipment requires a balance of precision and durability. Our Vortex Flow Transmitter is designed to reduce your total cost of ownership through its low-maintenance design and high resistance to harsh media.
