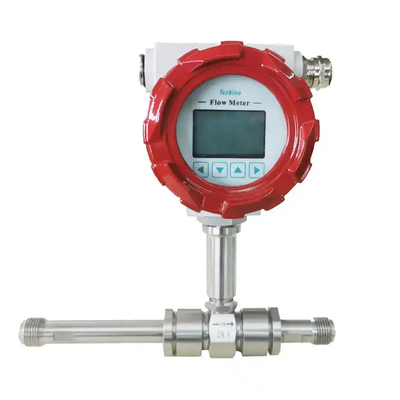

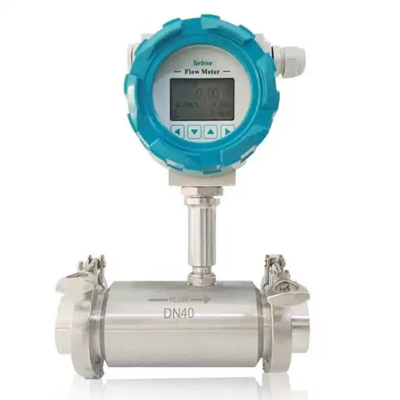

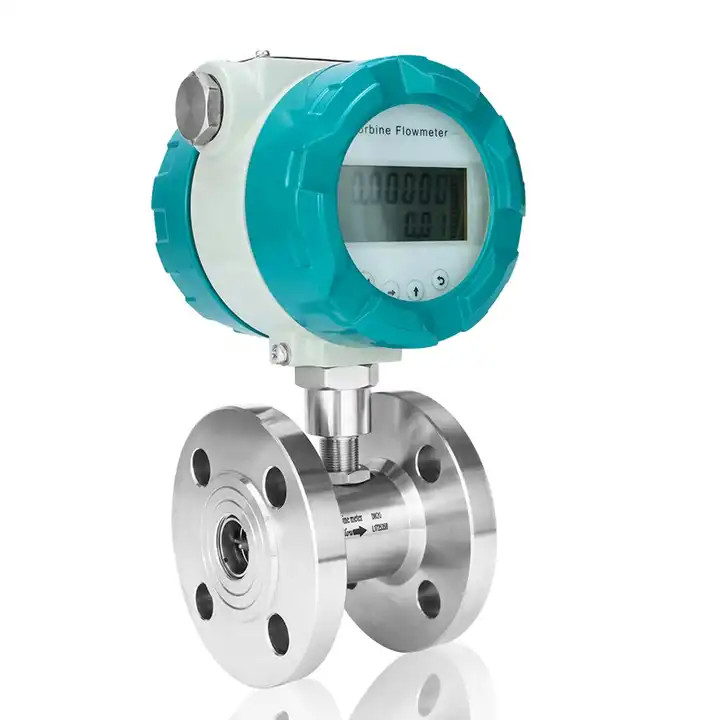

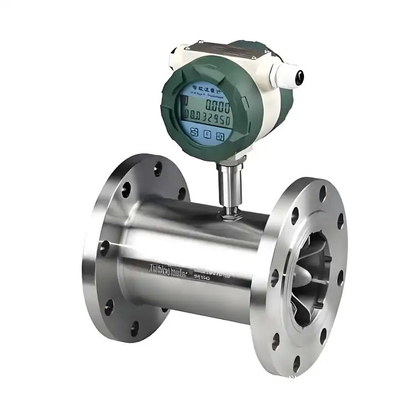

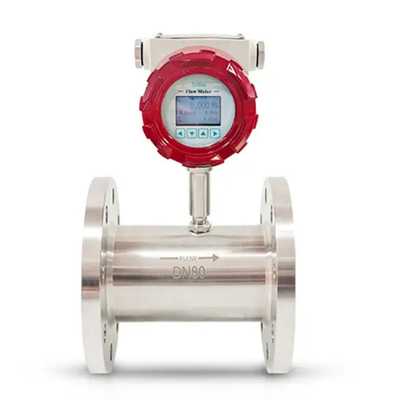

Industrial DN15-6000mm Digital Turbine Flow Meter High Accuracy
Product Details:
| Brand Name: | INSTE |
| Model Number: | IST-LWGY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 200-500$ |
| Packaging Details: | wooden package |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per day |
|
Detail Information |
|||
| Reading: | Instant & Total | Work Stress: | DN15～DN50:4.0MPa |
|---|---|---|---|
| Feature: | High Efficiency | Pressure Loss: | Resistance Coefficient Cd≤2.4 |
| Max Pressure: | 20.0bar | Explosion Proof: | Exd II BT4, Exia II CT4 |
| Connection: | Screw Thread/flange/clamp | Display: | LCD, LED, Digital |
| Protection Class: | IP65 Or IP68 | Processing: | Lathe |
| Accuray: | ±0.5% | Temperature: | Customized Available |
| Linearity: | ±0.1% Of Reading | Electronic Controlling: | PLC |
| Pipe Diameter: | 15mm~6000mm | ||
| Highlight: | Industrial Turbine Flow Meter,Industrial Turbine Flow Sensor,High Accuracy Turbine Flow Meter |
||
Product Description
Industrial DN15-6000mm Digital Turbine Flow Meter High Accuracy
The Industrial Digital Turbine Flow Meter is a versatile and high-precision solution designed for measuring the flow rate of low-viscosity liquids across an expansive range of pipe sizes, from DN15 to DN2000mm (up to DN6000 for custom industrial ducts).
LWGY Series Turbine Flow Sensor(Hereinafter referred to as sensor)Based on the principle of torque balance,It belongs to speed flow meter. The sensor has the characteristics of simple structure, light weight, high precision, good repeatability, responsiveness, easy installation and maintenance, etc. It is widely used in petroleum, chemical, metallurgy, water supply, papermaking and other industries. It is an ideal instrument for flow measurement and energy saving.
The sensor is used in conjunction with the display instrument. It is suitable for measuring liquids in closed pipes that do not corrode stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, cemented carbide, and have no impurities such as fibers and particles. If it is matched with a display instrument with special functions, it can also perform quantitative control and over-alarm alarm. The explosion-proof type (ExmIIT6) of this product is selected, and it can be used in an explosive environment.
The sensor is suitable for media with a viscosity of less than 5 × 10-6m2 / s at operating temperature. For liquids with a viscosity of greater than 5 × 10-6m2 / s, the sensor must be calibrated with real liquid before use.
If the user needs to use a special form of sensor, the order can be negotiated. When an explosion-proof sensor is required, it should be explained in the order.
Key Features & Technical Advantages
-
Unmatched Pipe Size Range: Engineered to support a wide spectrum of industrial piping, from small DN15 laboratory tubes to massive DN6000 industrial water mains.
-
High-Accuracy Digital Processing: Features a high-resolution four-digit LCD display and advanced circuitry to deliver a basic tolerance of ±0.5%FS (optional ±0.2%FS).
-
Robust Stainless Steel Construction: The housing is crafted from high-grade 304 or 316L stainless steel, providing excellent durability and resistance to industrial wear.
-
Smart Communication & Integration: Supports standard 4-20mA DC output, pulse signals, and RS-485 (Modbus) for seamless integration into factory automation and computer networking.
-
Low Pressure Drop: The optimized turbine rotor design ensures minimal obstruction to the fluid flow, saving energy in large-scale pumping systems.
| name | Industrial DN15-6000mm Digital Turbine Flow Meter High Accuracy |
| Pipe Diameter Range | DN15, DN50, DN100 ... up to DN6000mm |
| Accuracy Class | ±0.5%R (Standard); ±0.2%R (High Precision) |
| Output Signal | 4-20mADC, Pulse, RS-485, HART Protocol |
| Safety Ratings | Exd II CT6 Gb (Explosion-proof); IP65 (Waterproof) |
| Housing Material | 304 / 316L Stainless Steel |
Industrial Applications & Versatility
This Industrial Turbine Flow Sensor excels in environments requiring both precision and ruggedness:
-
Water & Wastewater: Monitoring high-volume flow in DN6000 main lines or precise dosing in DN15 pipes.
-
Oil & Gas: Measuring light oils, fuels, and lubricants with high repeatability.
-
Chemical Processing: Handling non-corrosive or mildly corrosive industrial solvents.
-
HVAC & Cooling: Measuring chilled water and heat exchange fluids in massive cooling towers.
