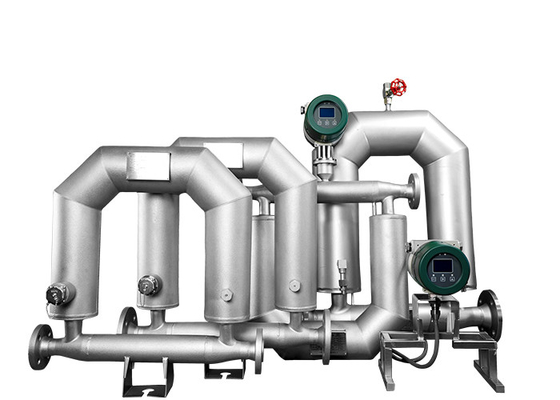

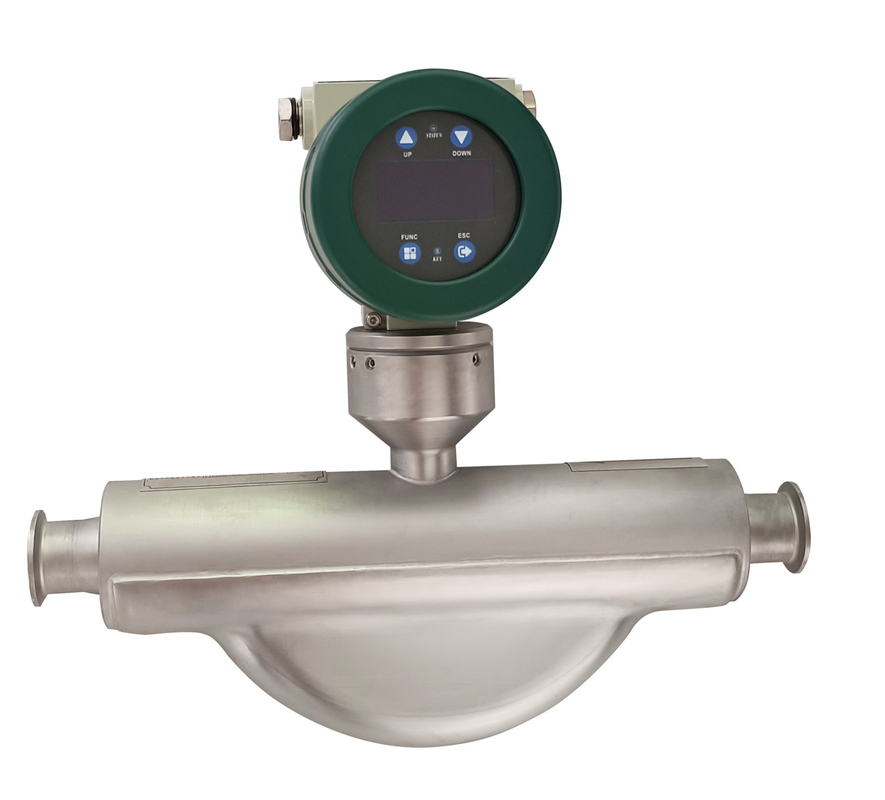

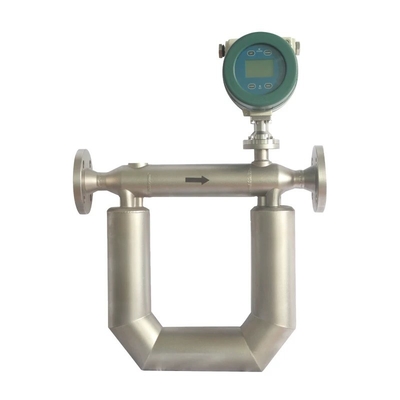

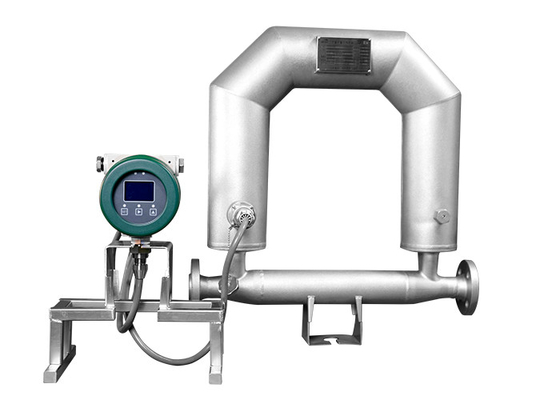

High Accuracy Long Lifespan Coriolis Flow Sensor Mass Flow Meter
Product Details:
| Place of Origin: | Jiangsu，China |
| Brand Name: | INSTE |
| Model Number: | IST-CORIOLIS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 300-500$ |
| Packaging Details: | wooden package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per day |
|
Detail Information |
|||
| Temperature Measuring Range: | -200～350℃ | Ambient Temperature: | -40℃～60℃ |
|---|---|---|---|
| Pressure: | 0～4.0MPa | Accuracy Class: | ± 0.1% |
| Explosion-proof Level: | Exdb IaⅡCT6 Gb | Display: | 128x64 LCD Display |
| Output Signal: | 4 ~ 20mA | Communication Signal: | RS485, MODBUS |
| Power Supply: | 18~36VDC, 85~265VAC | ||
| Highlight: | High Accuracy Coriolis Flow Sensor,High Accuracy Mass Flow Meter,Long Lifespan Mass Flow Meter |
||
Product Description
Mass Flow Meter
The Coriolis Mass Flow Meter is a premier measurement solution designed to meet the rigorous demands of ingredient mixing, complex chemical processes, and commercial custody transfer. By measuring mass flow directly in a sealed pipeline, it ensures unparalleled accuracy across a vast spectrum of industrial fluids and gases.
| name | High Accuracy Long Lifespan Coriolis Flow Sensor Mass Flow Meter |
| keyword | Coriolis Mass Flow Meter |
| Accuracy Class | ± 0.1% |
| Communication signal | RS485, MODBUS |
| Power Supply | 18~36VDC, 85~265VAC |
Application
The mass flow meter can be used in the following fields to meet the requirements of ingredient, mixing processes and commercial measurement.
Chemical: containing chemical reaction system
Petroleum: moisture content analysis
Lipids: including vegetable oils, animal fats and other oils
Pharmaceutical
Painting
Paper making
Textile printing and dyeing
Fuel: crude oil, heavy oil, coal slurry, lubricant and other fuels.
Food: gas dissolving beverage, health drink and other liquid.
Transportation: pipeline liquid measurement.
Low temperature fluid, like liquid oxygen and liquid nitrogen, the low temperature up to -200℃
High temperature fluid, the maximum temperature up to 300℃
High pressure fluid, like slurry flow measurement for oil drilling cementing
