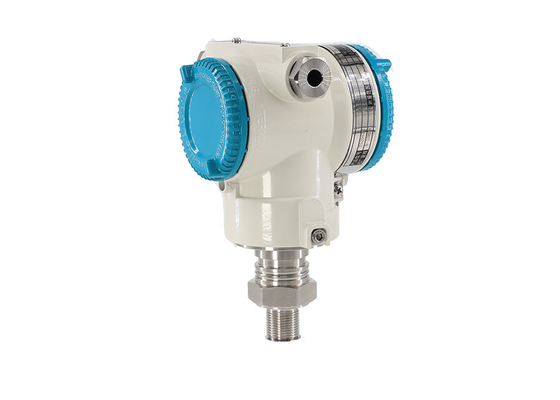

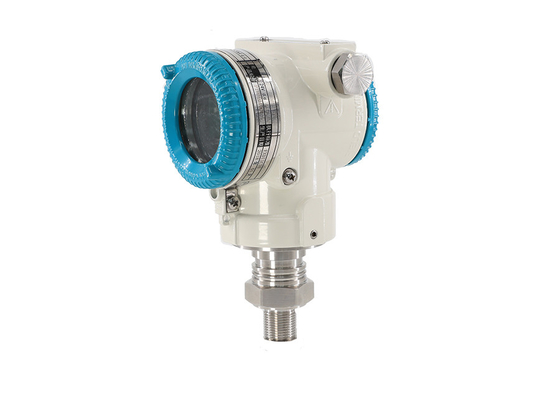

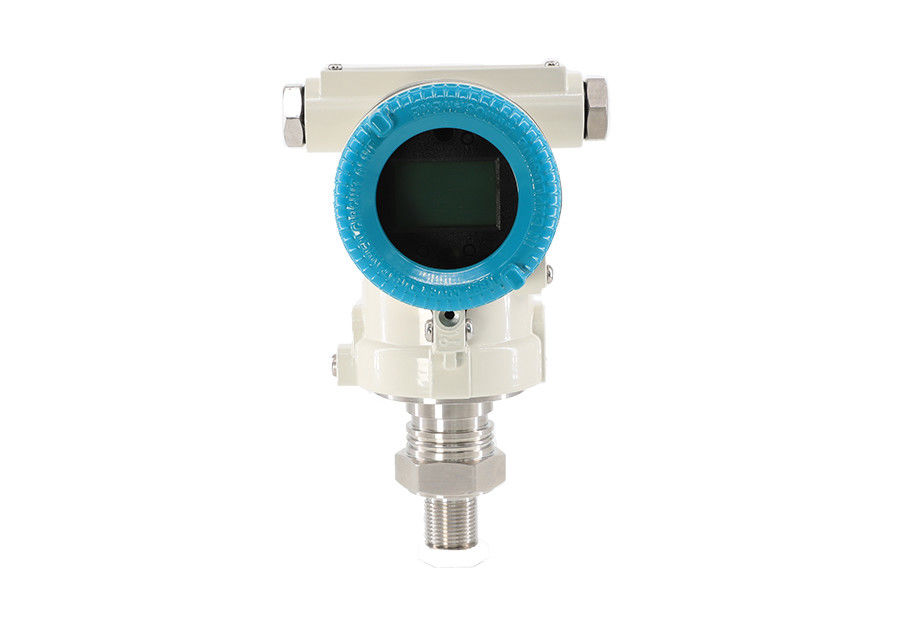

Industrial IP65 Digital Pressure Sensor Transmitter With 4-20mA Display
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | IST2088 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 100$ |
| Packaging Details: | wooden package |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Storage Temperature: | -20~50℃ | Type: | Pressure Senor |
|---|---|---|---|
| Material: | 304 Stainless Steel | Flange Pressure: | 1/4 - 18 NPT Thread |
| Mounting Type: | Direct Mount | Wetted Parts Material: | Stainless Steel |
| Communication: | RS485 | Signal Output: | 4-20mA 2 Wires |
| Measuring Range: | 0 ~ 10KPa...2MPa | Threaded Connection: | 50.4mm |
| Output: | 4~20mA, | Communication Protocol: | HART |
| Output Signal: | 4-20 MA | Output Impedance: | 2.5KΩ~6KΩ |
| Accuracy: | ±0.5% Of Full Scale | ||
| Highlight: | Industrial Pressure Sensor Transmitter,Industrial Digital Pressure Transducer,20mA Pressure Sensor Transmitter |
||
Product Description

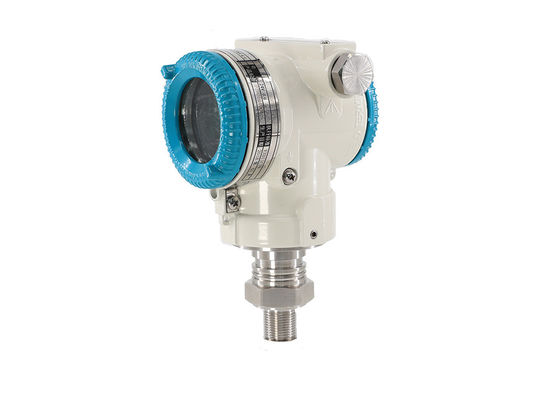

Industrial IP65 Digital Pressure Sensor Transmitter With 4-20mA Display
The Industrial IP65 Digital Pressure Sensor Transmitter is a high-performance solution designed for demanding environments. Featuring a rugged aluminium alloy shell and integrated field display, this transmitter provides precision 4-20mADC signal output for liquids, gases, and steam.
Engineered for safety and durability, it meets strict Exd II CT6 explosion-proof and Ex tb IIIC T80ºC dust ignition-proof standards, ensuring reliable operation in hazardous industrial zones.
- isolation and explosion-proof Exd II CT6 & Ex tb IIIC T80ºC D
- aluminium alloy shell, ingress protection IP65
- field display, 4-20mADC signal output and other telecommunication signals
- with polarity reversal protection, overcurrent and overvoltage protection
- strong anti-jamming, long-term stability
| Measuring Medium | Liquid, Gas or Steam |
| Pressure Range | -100kPa...0~1kPa...100MPa |
| Overload | 1.5 times the full scale |
| Pressure Type | Gauge, Absolute or Sealed Gauge |
| Accuracy | ±0.5%FS(standard);±0.25%FS(option); |
| Long-term Stability | ±0.1%FS/year(Representative); ±0.2%FS/year(Maximum) |
| Temperature Coefficient of Zero | ±0.03%FS/ºC(Reference 25ºC) |
| Temperature Coefficient of Full Scale | ±0.03%FS/ºC(Reference 25ºC) |
| Working Temp | -30~85ºC |
| Storage Temp | -40~120ºC |
| Supply Voltage | 24VDC(12~30V) |
| Output Signal | 4~20mADC or Customization |
| Output Mode | Two-wire, Three-tire |
| Load Resistance | ≤(U-12)/0.02Ω |
| Insulation Resistance | 100MΩ, 500VDC |
| Protection of Shell | IP65 |
| Electrical Connection | Dedicated Shield Cable 1.5 meters |
| Housing Material | 304, 316L |
Applications & Durability
This High-Accuracy Pressure Transmitter is designed for versatility, supporting pressure types including Gauge, Absolute, or Sealed Gauge. With an overload capacity of 1.5 times the full scale, it handles pressure spikes with ease.
Commonly used in:
-
Petrochemical and Oil & Gas processing.
-
Power plant steam monitoring.
-
Industrial automation and hydraulic systems.
-
Hazardous area gas pressure measurement.
