High Accuracy Explosion Proof Metal Tube Rotameter For Water Liquid Medium Gas
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | INSTE H250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 200$-1000$ |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets per day |
|
Detail Information |
|||
| Explosion Proof Grade: | Exia II CT5Ga, Exd II BT5Gb | Connection Form: | Stabndard:DIN2501 Standard Flange |
|---|---|---|---|
| Port: | Shenghai/ Shenzhen | Display Type: | Analog |
| Installation Height: | DN15-DN200:250mm; More Tahn DN80:350mm | Output: | 4-20mA |
| Scale Units: | L/min | Precision Class: | 2.5 |
| Applicable Medium: | Gas, Liquid | Exportation: | Two-wire System 4~20MA |
| Measurement Range: | 0-100 L/min | Connection: | Flange |
| Flow Direction: | Bottom To Top | Warranty: | 18 Months |
| Temperature Rating: | Max. 100°C | Lifetime: | 5-10 Years |
| Material: | Metal | Float Weight: | 20g |
| Protection Grade: | IP 65 | Mounting Type: | Vertical |
| Display Mode: | Liquid Crystal, Pointer | Operating Temperature: | 0-80°C |
| Power Supply: | None | Accuracy: | ±2% Of Full Scale |
| Delivery: | Express, Ship, Air | Connection Size: | 1/2 Inch |
| Highlight: | High Accuracy Metal Tube Rotameter,High Accuracy metal tube flowmeter,Explosion Proof Metal Tube Rotameter |
||
Product Description

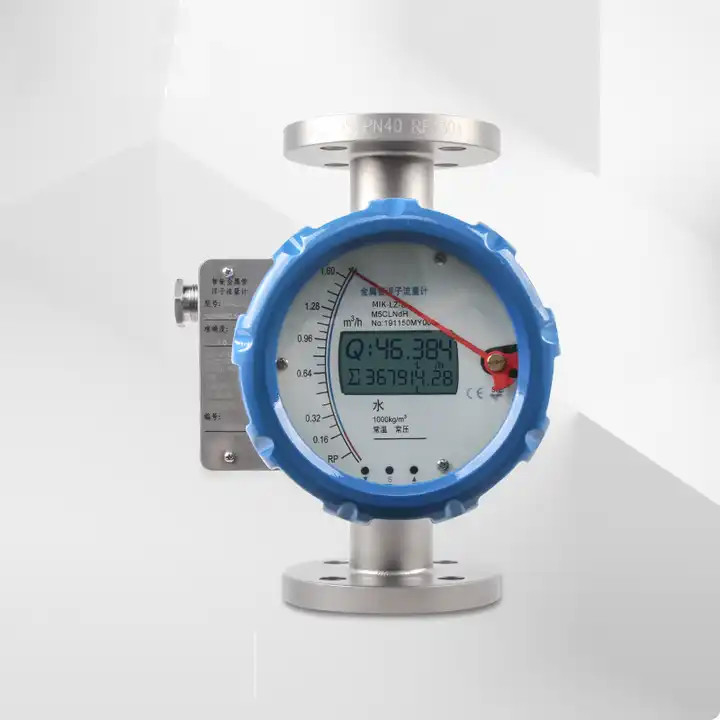

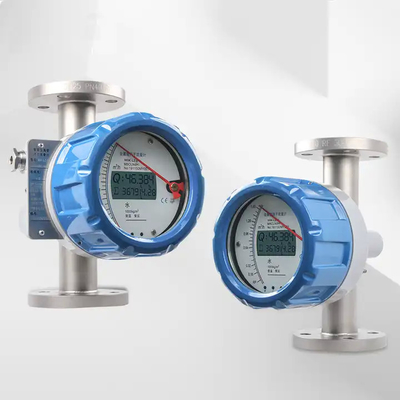

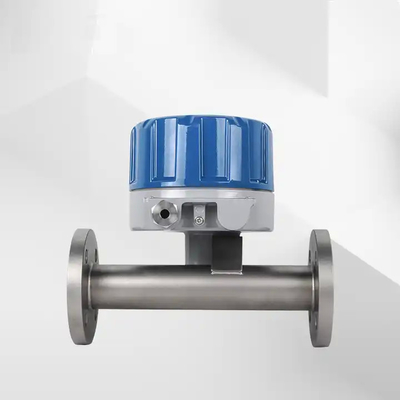

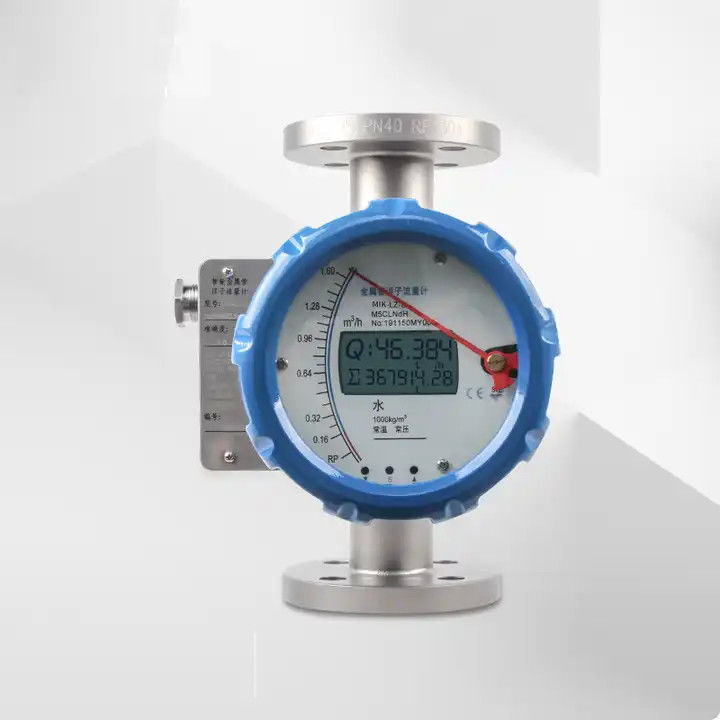

High Accuracy Metal Tube Rotameter Explosion Proof For Water Liquid Medium Gas
The Explosion Proof Metal Tube Rotameter (Variable Area Flow Meter) is a premier industrial solution for the continuous measurement of water, liquid mediums, and gases. Engineered for high accuracy in hazardous environments, this meter features an all-metal construction that withstands high pressure and extreme temperatures where traditional glass tubes cannot operate.
Equipped with an advanced Exd II CT6 Gb explosion-proof rating and a high-precision digital or mechanical indicator, it ensures safe and reliable flow monitoring for critical process control.
Basic Info.
Features

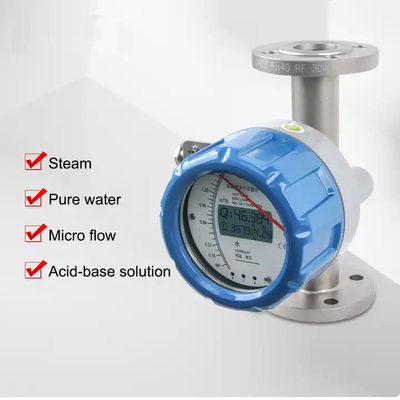

1. Suitable for gas and liquid measurement in various industries.
2. Cone-shape measuring tube design,which has wide measuring range and good linearity.
3. Wetted parts material are optional: SS304, SS316L, FEP, Hastelloy C, Titanium.
4. Adopt advanced magnetic coupling system design, improve the accuracy and stability.
5. For the digital LCD display type, the flow range of the instantaneous flow can be corrected onsite based on the different measuring medium.
6. Besides AC/DC power supply, it supports battery power supply function.
7. Through the HART protocol, you can use the handheld operator or host computer software to perform partial or full configuration operations on the flowmeter.
