High Accuracy Vortex Type Flow Meter DN15-50 Digital Vortex Flow Transmitter
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | INSTE |
| Model Number: | ISTLUGB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 200$/set |
| Packaging Details: | wooden package |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50sets per day |
|
Detail Information |
|||
| Protection Grade: | IP65 | Pressure Range: | 0-40 Bar |
|---|---|---|---|
| Communication: | RS-485 / MODBUS , HART | Range Ratio: | 1:10 ； 1:15 |
| Ambient Temperature: | -35℃~60℃(without LCD)；-5℃~60℃(with LCD) | Language: | Chinese, English |
| Applications: | Water Supply,heating Supply | Process Connection: | Flange, Thread |
| Measurement Ratio: | Standard -10:1 | Port: | Xian, Shanghai, Beijing |
| Product Naem: | Juice Flow Meter | Medium Temperature: | -40 To 350 Degrees Celsius |
| Connection: | Flange: DN15-DN300;Wafer: DN15-DN300 | Connection Type: | Insertion |
| Nominal Pressure: | 1.0~6.3Mpa | ||
| Highlight: | High Accuracy Vortex Type Flow Meter,High Accuracy Vortex Flow Transmitter,DN15 Vortex Type Flow Meter |
||
Product Description

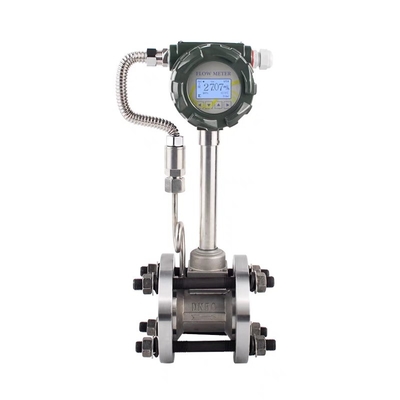

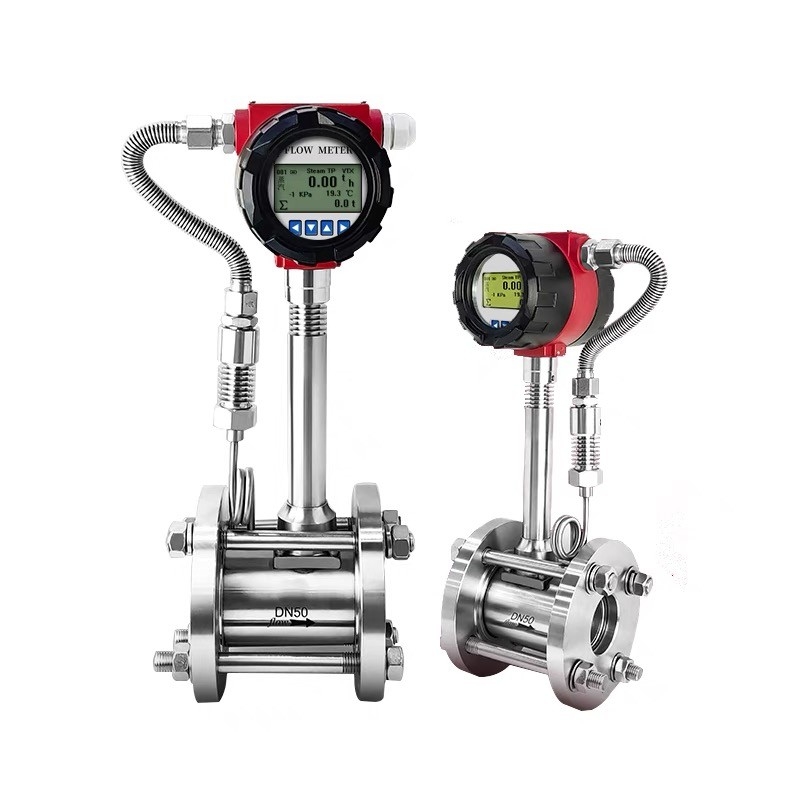

High Accuracy Vortex Type Flow Meter DN15-50 Digital Vortex Flow Transmitter
Our High Accuracy Vortex Type Flow Meter (DN15-50) is the ultimate solution for precise flow measurement in small-to-medium industrial pipelines. Engineered with a low-maintenance design, this vortex flow transmitter is ideal for metering saturated steam, compressed air, and various liquids.
Core Benefits & Technical Highlights
Small Diameter Optimization (DN15-DN50): Specifically designed for high sensitivity in smaller pipes, ensuring accurate pulse detection even at lower flow velocities.
No Moving Parts, Low Maintenance: Unlike turbine or gear meters, the vortex type flow meter has no internal components that wear out, drastically reducing the total cost of ownership.
Versatile Media Measurement: A single device capable of handling saturated steam, superheated steam, technical gases, and low-viscosity liquids.
Superior Mechanical Stability: The rugged sensor construction is resistant to pipeline vibrations and thermal shocks, ensuring a stable vortex signal across a wide temperature range.
Advanced Digital Transmitter: Features a clear LCD interface for instantaneous flow rate and totalized flow, with multiple output options for PLC/SCADA integration.
| Instrument caliber(mm) | liquid | gas | ||
| Measuring range(m3/h) | Output frequency range(Hz) | Measuring range(m3/h) | Output frequency range(Hz) | |
| 15 | 0.3～5 | 24～400 | 4～20 | 352～1761 |
| 20 | 0.6～10 | 23～382 | 6～30 | 254～1273 |
| 25 | 1.2～16 | 21～320
| 8～50 | 161～1112 |
| 32 | 1.8～20 | 18～200 | 10～100 | 97～1172 |
| 40 | 2～40 | 10～190 | 20～200 | 134～1018 |
| 50 | 3～60 | 8～150 | 35～350 | 87～952 |
| 65 | 4～85 | 6～120 | 45～450 | 71～764 |
| 80 | 6.5～130 | 4.1～82 | 86～1100 | 54～696 |
| 100 | 15～220 | 4.7～69 | 133～1700 | 42～548 |
| 125 | 20～350 | 3.2～57 | 150～2000 | 26～346 |
| 150 | 30～450 | 2.8～43 | 347～4000 | 34～392 |
| 200 | 45～800 | 2～31 | 560～8000 | 23～326 |
| 250 | 65～1250 | 1.5～25 | 890～11000 | 18.5～229 |
| 300 | 95～2000 | 1.2～24 | 1360～18000 | 16～216 |
| (300) | 100～1500 | 5.5～87
| 1560～15600 | 85～880 |
| (400) | 180～3000 | 5.6～87 | 2750～27000 | 85～880 |
| (500) | 300～4500 | 5.6～88 | 4300～43000 | 85～880 |
| (600) | 450～6500 | 5.7～89 | 6100～61000 | 85～880 |
| (800) | 750～10000 | 5.7～88 | 11000～110000 | 85～880 |
| (1000) | 1200～1700 | 5.8～88 | 17000～170000 | 85～880 |
| >(1000) | protocol | protocol
| ||
Wide Ranging Industrial Applications
The DN15-DN50 Vortex Flow Sensor is a critical component in:
Steam Tracing & Heating: Monitoring small steam lines for energy efficiency and heat loss prevention.
Compressed Air Management: Accurate metering of air consumption in specific workshop sections or machine tools.
Chemical Dosing: Measuring the flow of non-corrosive chemicals in pilot plants and R&D facilities.
Gas Distribution: Ideal for nitrogen, argon, and CO2 monitoring in pharmaceutical and food packaging lines.
Why Select Our Digital Vortex Flow Transmitter?
Precision and reliability are the hallmarks of our flow measurement technology. This High Accuracy Vortex Meter eliminates the guesswork in your process control. By combining a wide range ratio with robust digital output, it ensures your data is both accurate and actionable. Its compact "wafer" or "flange" connection options allow for easy installation even in tight spaces, making it the most versatile choice for modern industrial instrumentation.
