High Precision Radar Level Meter Radar Type Flow Meter 4-20mA Output For Solid Powder Liquid
Product Details:
| Place of Origin: | Jiangsu Province，China |
| Brand Name: | INSTE |
| Model Number: | ISTRD-53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 500-1000/set |
| Packaging Details: | wooden package |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets/day |
|
Detail Information |
|||
| Accuracy: | ± 3mm | Measuring Range: | 0-70m |
|---|---|---|---|
| Pressure: | -0.1-4.0Mpa | Application: | Liquid, Solid Material, Strong Dust, Strong Corrosive Liquid, Easy To Crystallize |
| Power Supply: | 220VAC/24VDC | Signal Output: | 4-20mA, RS485，Modbus，Hart |
| Temperature: | -40℃ -250℃ | Frequency: | 26 GHz |
| Protection Grade: | IP67 | Explosion-proof Grade: | ExiaⅡCT6 Ga |
| Procession Connection: | Thread, Flange | ||
| Highlight: | High Precision Radar Level Meter,High Precision Radar Type Flow Meter,20mA Radar Level Meter |
||
Product Description

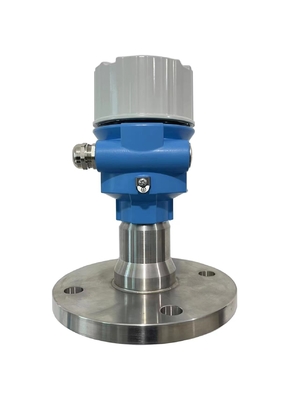

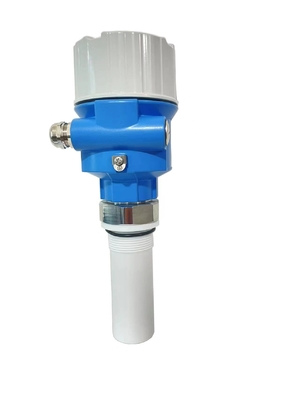

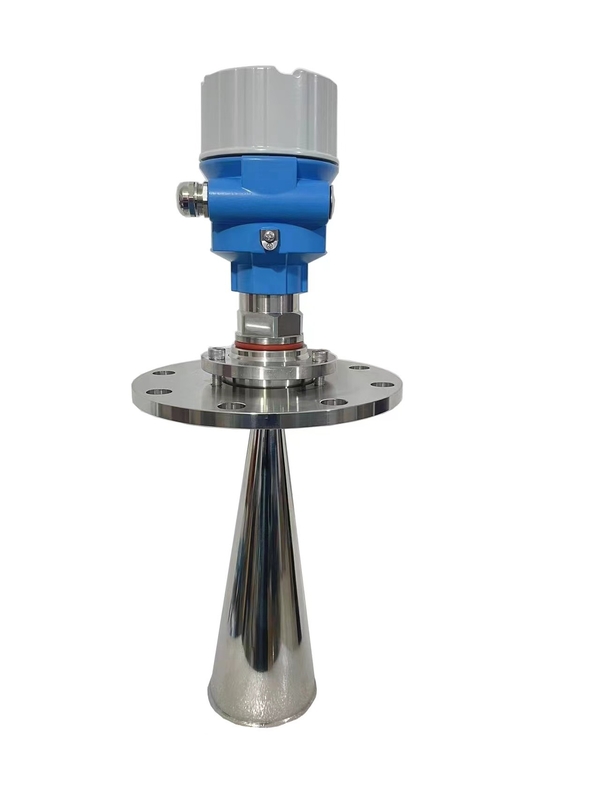

26GHz Radar Level Meter
Our 26GHz Radar Level Meter is a high-frequency sensing solution specifically engineered for the most demanding industrial environments. Designed to handle solid materials and strong dust, this 70-meter long-range transmitter provides non-contact, high-precision level detection. Its advanced microwave technology excels in crystallization and condensation occasions, making it the ideal choice for stable level monitoring in large silos, storage tanks, and reactors.
Application:Solid material, Strong dust
easy to crystallize, condensation occasion
Measuring Range: 70 meters
Process Connection:Universal Flange
Medium Temperature: -40℃ ~ 250℃
Process Pressure: -0.1 ~ 0.1 MPa
Protection Grade: IP67
Accuracy: ± 15mm
Frequency Range:26GHz
Signal Output:4... 20mA/HART (Two-wire / Four)
RS485/ Modbus
Engineered for Extreme Industrial Challenges
-
70m Long Range Detection: With a powerful 26GHz frequency, this radar meter offers a focused beam angle to measure levels up to 70 meters with an accuracy of ±15mm.
-
Dust & Vapor Resistance: The high-frequency signal penetrates strong dust and is virtually unaffected by airborne particles, ensuring reliable data in mining and cement applications.
-
Condensation & Crystallization Protection: Specialized antenna design prevents measurement errors in environments where media is easy to crystallize or where condensation occurs on the sensor head.
-
High Temperature Resilience: Built to withstand process temperatures from -40℃ up to 250℃, suitable for high-heat chemical and industrial processes.
-
Universal Installation: Features a Universal Flange connection, allowing for quick and flexible mounting on diverse tank structures and pressure vessels.
Typical Applications
This High-Frequency Radar Level Transmitter is widely implemented in:
-
Mining & Cement: Monitoring ore silos and cement powder bins with strong dust.
-
Chemical & Fertilizer: Precise level detection in reactors prone to easy crystallization.
-
Power Generation: Reliable coal bunker and fly ash level monitoring in high temperature environments.
-
Food & Grain: Long-range inventory management for large-scale grain elevators and flour mills.
Why Choose Our 26GHz Radar Level Solution?
Reliability in bulk solid measurement depends on the ability to filter out "false echoes." Our Radar Level Meter utilizes advanced signal processing to ensure accurate detection in real-time. Supporting both 4-20mA/HART and RS485 Modbus protocols, it offers seamless integration into your existing control systems. The combination of IP67 protection and a rugged mechanical design provides a low-maintenance, cost-effective solution for your most complex level measurement needs.
